EC8AW-24S15

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 15V 15W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EC8AW-24S15

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 15V 15W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EC8AW-24S15

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max) [Max]	1 A
Efficiency	90 %
Features	OVP, UVLO, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	9 PC Pad
Package / Case	24-DIP Module
Power (Watts)	15 W
Size / Dimension [x]	31.8 mm
Size / Dimension [x]	1.25 "
Size / Dimension [y]	0.8 in
Size / Dimension [y]	20.3 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Standard Number	60950-1
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	15 V

EC8AW Series

Part	Current - Output (Max)	Current - Output (Max)	Type	Features	Mounting Type	Approval Agency	Standard Number	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 1	Voltage - Output 2	Applications	Package / Case	Package / Case	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Isolation	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max) [Max]
Cincon Electronics Co. LTD EC8AW-24D12	625 mA	625 mA	Isolated Module	OCP OVP Remote On/Off SCP UVLO	Through Hole	CE	60950-1	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	12 V	-12 V	ITE (Commercial)	9 PC Pad	24-DIP Module	89 %	85 °C	-40 °C	15 W	1.5 kV	2	9 V	36 V
Cincon Electronics Co. LTD EC8AW-24D15		500 mA	Isolated Module	OCP OVP Remote On/Off SCP UVLO	Through Hole	CE	60950-1	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	15 V	-15 V	ITE (Commercial)	9 PC Pad	24-DIP Module	90 %	85 °C	-40 °C	15 W	1.5 kV	2	9 V	36 V	500 mA
Cincon Electronics Co. LTD EC8AW-48S12			Isolated Module	OCP OVP Remote On/Off SCP UVLO	Through Hole	CE	60950-1	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	12 V		ITE (Commercial)	9 PC Pad	24-DIP Module	90 %	85 °C	-40 °C	15 W	1.5 kV	1	18 V	75 V		1.25 A
Cincon Electronics Co. LTD EC8AW-48S15			Isolated Module	OCP OVP Remote On/Off SCP UVLO	Through Hole	CE	60950-1	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	15 V		ITE (Commercial)	9 PC Pad	24-DIP Module	90 %	85 °C	-40 °C	15 W	1.5 kV	1	18 V	75 V		1 A
Cincon Electronics Co. LTD EC8AW-24S12			Isolated Module	OCP OVP Remote On/Off SCP UVLO	Through Hole	CE	60950-1	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	12 V		ITE (Commercial)	9 PC Pad	24-DIP Module	90 %	85 °C	-40 °C	15 W	1.5 kV	1	9 V	36 V		1.25 A
Cincon Electronics Co. LTD EC8AW-24S15			Isolated Module	OCP OVP Remote On/Off SCP UVLO	Through Hole	CE	60950-1	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	15 V		ITE (Commercial)	9 PC Pad	24-DIP Module	90 %	85 °C	-40 °C	15 W	1.5 kV	1	9 V	36 V		1 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 31.75
		5	$ 30.69
		10	$ 30.38
		25	$ 29.78
		50	$ 28.88
		100	$ 27.44

Description

General part information

EC8AW Series

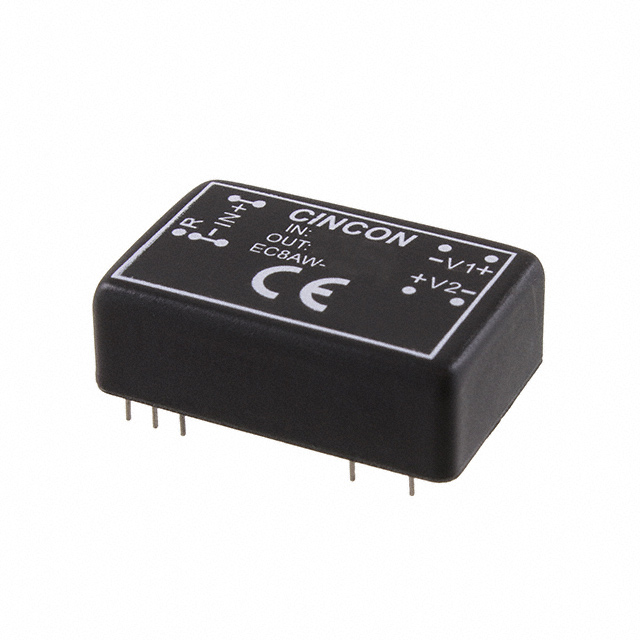

Isolated Module DC DC Converter 1 Output 15V 1A 9V - 36V Input
