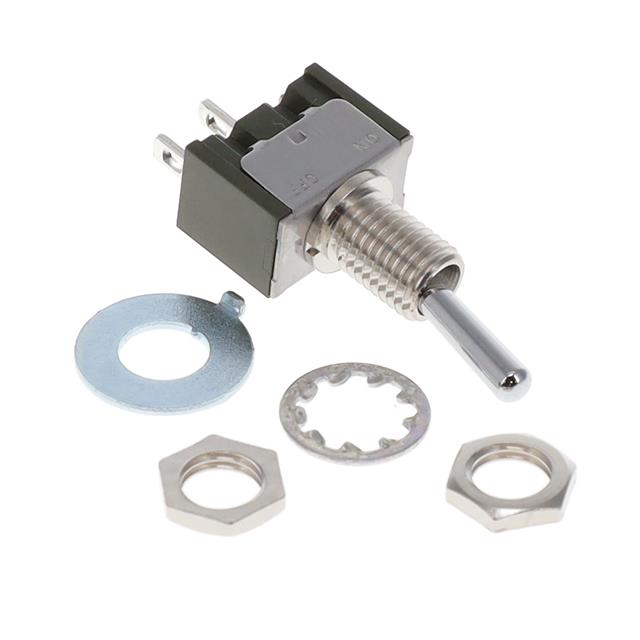

Specification	M2011SS4W01

Actuator Length	10.5 mm
Actuator Material	Chrome Plated, Brass
Actuator Type	Standard Round
Bushing Thread	M6 x 0.75
Bushing Thread Diameter	6 mm
Bushing Thread Pitch	0.75 mm
Circuit	SPST
Current Rating	4 A, 6 A
Electrical Life (Cycles)	25000
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Panel Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Panel Cutout Diameter	6.5 mm
Panel Cutout Shape	Circular
Switch Function	On-Off
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2011SS Series

Part	Voltage Rating - DC	Actuator Length	Actuator Type	Illumination	Voltage Rating - AC	Termination Style	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Features	Circuit	Current Rating	Bushing Thread	Switch Function	Panel Cutout Diameter	Panel Cutout Shape	Actuator Material	Electrical Life (Cycles)	Termination Length	Bushing Thread Diameter	Bushing Thread Pitch
NKK Switches M2011SS1W01-BA	30 V	13.5 mm	Standard Round with Cap	Non-Illuminated	125 V	Solder Lug	85 °C	-30 °C	Panel Mount	Black Cap	SPST	4 A 6 A	1/4-40	On-Off	6.5 mm	Circular	Brass Chrome Plated	25000
NKK Switches M2011SS1W01-BB	30 V	13.5 mm	Standard Round with Cap	Non-Illuminated	125 V	Solder Lug	85 °C	-30 °C	Panel Mount	White Cap	SPST	4 A 6 A	1/4-40	On-Off	6.5 mm	Circular	Brass Chrome Plated	25000
NKK Switches M2011SS1W03-BA	30 V	13.5 mm	Standard Round with Cap	Non-Illuminated	125 V	PC Pin	85 °C	-30 °C	Panel Mount	Black Cap	SPST	4 A 6 A	1/4-40	On-Off	6.5 mm	Circular	Brass Chrome Plated	25000
NKK Switches M2011SS1W01/CUL	30 V	10.5 mm	Standard Round	Non-Illuminated	125 V	Solder Lug	85 °C	-30 °C	Panel Mount	Epoxy Sealed Terminals	SPST	4 A 6 A	1/4-40	On-Off	6.5 mm	Circular	Brass Chrome Plated	25000
NKK Switches M2011SS1W02-BE	30 V	13.5 mm	Standard Round with Cap	Non-Illuminated	125 V	Quick Connect	85 °C	-30 °C	Panel Mount	Yellow Cap	SPST	4 A 6 A	1/4-40	On-Off	6.5 mm	Circular	Brass Chrome Plated	25000	0.062 in
NKK Switches M2011SS4G01	28 V	10.5 mm	Standard Round	Non-Illuminated	28 V	Solder Lug	85 °C	-30 °C	Panel Mount	Epoxy Sealed Terminals	SPST	0.4 VA	M6 x 0.75	On-Off	6.5 mm	Circular	Brass Chrome Plated	25000		6 mm	0.75 mm
NKK Switches M2011SS1W01/UC-BA	30 V	13.5 mm	Standard Round with Cap	Non-Illuminated	125 V	Solder Lug	85 °C	-30 °C	Panel Mount	Black Cap	SPST	4 A 6 A	1/4-40	On-Off	6.5 mm	Circular	Brass Chrome Plated	25000
NKK Switches M2011SS1W03	30 V	10.5 mm	Standard Round	Non-Illuminated	125 V	PC Pin	85 °C	-30 °C	Panel Mount	Epoxy Sealed Terminals	SPST	4 A 6 A	1/4-40	On-Off	6.5 mm	Circular	Brass Chrome Plated	25000
NKK Switches M2011SS1G01	28 V	10.5 mm	Standard Round	Non-Illuminated	28 V	Solder Lug	85 °C	-30 °C	Panel Mount	Epoxy Sealed Terminals	SPST	0.4 VA	1/4-40	On-Off	6.5 mm	Circular	Brass Chrome Plated	50000
NKK Switches M2011SS1A01	30 V	10.5 mm	Standard Round	Non-Illuminated	125 V	Solder Lug	85 °C	-30 °C	Panel Mount	Epoxy Sealed Terminals	SPST	4 A 6 A	1/4-40	On-Off	6.5 mm	Circular	Brass Chrome Plated	25000

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

M2011SS4W01 | Datasheet
