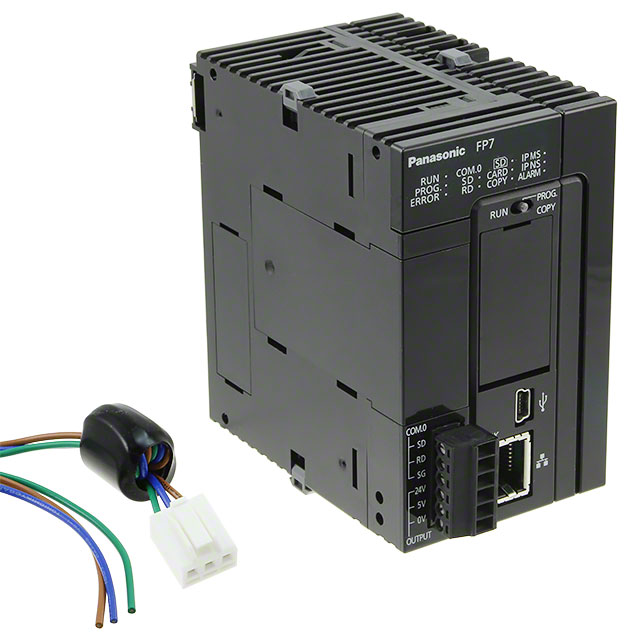

AFP7CPS31E

Obsolete

Panasonic Industrial Automation Sales

CONTROL LOGIC 24V

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

CONTROL LOGIC 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AFP7CPS31E	AFP7CP Series

Approval Agency	cULus, CE	cULus, CE
Communications	USB, RS-232C, Option Cards Available, Ethernet	USB, RS-232C, Option Cards Available, Ethernet
Display Type	No Display	No Display
Expandable	16 Modules	16 Modules
Memory Size	576 K Words	256 - 976 Words
Mounting Type	DIN Rail	DIN Rail
Number of Inputs and Type	Option Cards Available	Option Cards Available
Number of Outputs and Type	Option Cards Available	Option Cards Available
Software	FPWINGR7	FPWINGR7
Software	FPWINPRO7	FPWINPRO7
Voltage - Supply	24 VDC	24 VDC
Weight	219.99 g	180.08 - 219.99 g
Weight	0.485 lb	0.397 - 0.485 lb

CONTROL LOGIC 120K STEP 24V

Part	Approval Agency	Display Type	Memory Size	Software	Software	Communications	Mounting Type	Weight	Weight	Voltage - Supply	Expandable	Number of Inputs and Type	Number of Outputs and Type
Panasonic Industrial Automation Sales AFP7CPS3E	CE, cULus	No Display	608 Words	FPWINGR7	FPWINPRO7	Ethernet, Option Cards Available, RS-232C, USB	DIN Rail	219.99 g	0.485 lb	24 VDC	16 Modules	Option Cards Available	Option Cards Available
Panasonic Industrial Automation Sales AFP7CPS3	CE, cULus	No Display	608 Words	FPWINGR7	FPWINPRO7	RS-232C, USB	DIN Rail	219.99 g	0.485 lb	24 VDC	16 Modules	Option Cards Available	Option Cards Available
Panasonic Industrial Automation Sales AFP7CPS41ES	CE, cULus	No Display	976 K	FPWINGR7	FPWINPRO7	Ethernet, Option Cards Available, RS-232C, USB	DIN Rail	219.99 g	0.485 lb	24 VDC	16 Modules	Option Cards Available	Option Cards Available
Panasonic Industrial Automation Sales AFP7CPS31ES	CE, cULus	No Display	576 K Words	FPWINGR7	FPWINPRO7	Ethernet, Option Cards Available, RS-232C, USB	DIN Rail	219.99 g	0.485 lb	24 VDC	16 Modules	Option Cards Available	Option Cards Available
Panasonic Industrial Automation Sales AFP7CPS31E	CE, cULus	No Display	576 K Words	FPWINGR7	FPWINPRO7	Ethernet, Option Cards Available, RS-232C, USB	DIN Rail	219.99 g	0.485 lb	24 VDC	16 Modules	Option Cards Available	Option Cards Available
Panasonic Industrial Automation Sales AFP7CPS21	CE, cULus	No Display	256 K Words	FPWINGR7	FPWINPRO7	Option Cards Available	DIN Rail	180.08 g	0.397 lb	24 VDC	16 Modules	Option Cards Available	Option Cards Available

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Programmable Logic Controller (PLC) DIN Rail 24VDC
