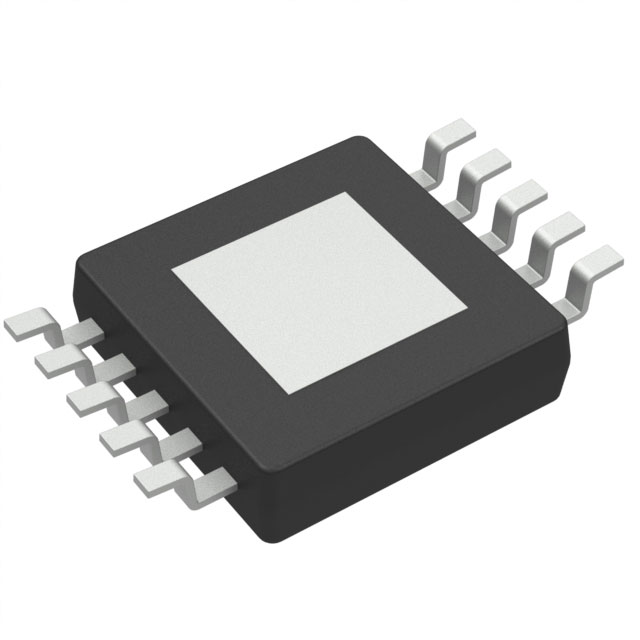

TS19501CB10 RBG

Obsolete

Taiwan Semiconductor Corporation

IC LED DRIVER CTRLR PWM 10MSOP

Search across all available documentation for this part.

Obsolete

Taiwan Semiconductor Corporation

IC LED DRIVER CTRLR PWM 10MSOP

Technical Specifications

Parameters and characteristics for this part

Specification	TS19501CB10 RBG

Applications	Lighting
Dimming	Analog, PWM
Frequency [Max]	700 kHz
Frequency [Min]	70 kHz
Grade	Automotive
Internal Switch(s)	False
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	3 Lead, 0.118 in
Package / Case	Exposed Pad, 10-TFSOP, 10-MSOP
Supplier Device Package	10-MSOP-EP
Topology	SEPIC, Step-Down (Buck), Step-Up (Boost)
Type	DC DC Controller
Voltage - Output [Max]	18 V
Voltage - Output [Min]	0 VDC
Voltage - Supply (Max) [Max]	38 V
Voltage - Supply (Min) [Min]	8 V

Part	Applications	Package / Case	Package / Case	Voltage - Output [Min]	Voltage - Output [Max]	Mounting Type	Frequency [Max]	Frequency [Min]	Dimming	Voltage - Supply (Min) [Min]	Grade	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Topology	Type	Internal Switch(s)	Voltage - Supply (Max) [Max]
Taiwan Semiconductor Corporation TS19501CB10 RBG	Lighting	0.118 in 3 Lead	10-MSOP 10-TFSOP Exposed Pad	0 VDC	18 V	Surface Mount	700 kHz	70 kHz	Analog PWM	8 V	Automotive	10-MSOP-EP	-40 °C	125 °C	1	SEPIC Step-Down (Buck) Step-Up (Boost)	DC DC Controller		38 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Driver IC 1 Output DC DC Controller SEPIC, Step-Down (Buck), Step-Up (Boost) Analog, PWM Dimming 10-MSOP-EP
