RP-4800-NO.2-0-STK-CS7710

Active

TE Connectivity Aerospace, Defense and Marine

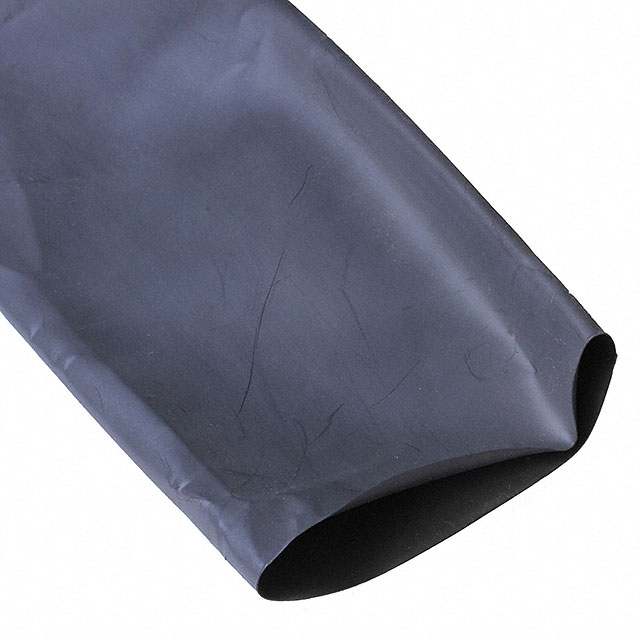

HEATSHRINK 2" BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RP-4800-NO.2-0-STK-CS7710

Active

TE Connectivity Aerospace, Defense and Marine

HEATSHRINK 2" BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RP-4800-NO.2-0-STK-CS7710	RP-48 Series

Color	Black	Black, Blue
Features	Abrasion Resistant, Solvent Resistant, Chemical Resistant, Flame Retardant, Fluid Resistant	Abrasion Resistant, Solvent Resistant, Chemical Resistant, Flame Retardant, Fluid Resistant
Inner Diameter - Recovered [diameter]	0.55 in	0.18 - 0.55 in
Inner Diameter - Recovered [diameter]	13.97 mm	4.57 - 13.97 mm
Inner Diameter - Supplied [diameter]	50.8 mm	25.4 - 50.8 mm
Inner Diameter - Supplied [diameter]	2 in	1 - 2 in
Length [x]	1.22 m	1.22 m
Length [x]	4 ft	4 ft
Material	Polyolefin (PO), Irradiated	Polyolefin (PO), Irradiated
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.045 in	0.045 in
Recovered Wall Thickness	1.14 mm	1.14 mm
Shelf Life	144 Months	144 Months
Shrink Temperature	95 °C	95 °C
Shrinkage Ratio	4 to 1	4 to 1
Type	Tubing, Flexible	Tubing, Flexible

RP-48 Series

HEATSHRINK 2" BLACK

Part	Shrink Temperature	Material	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]	Features	Recovered Wall Thickness	Recovered Wall Thickness	Shelf Life	Color	Operating Temperature [Max]	Operating Temperature [Min]	Type	Shrinkage Ratio
TE Connectivity Aerospace, Defense and Marine RP-4800-NO.2-0-STK-CS7710	95 °C	Polyolefin (PO), Irradiated	50.8 mm	2 in	0.55 in	13.97 mm	1.22 m	4 ft	Abrasion Resistant, Chemical Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant	0.045 in	1.14 mm	144 Months	Black	135 °C	-55 °C	Tubing, Flexible	4 to 1
TE Connectivity Aerospace, Defense and Marine RP-4800-NO.2-6-SP	95 °C	Polyolefin (PO), Irradiated	50.8 mm	2 in	0.55 in	13.97 mm			Abrasion Resistant, Chemical Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant	0.045 in	1.14 mm	144 Months	Blue	135 °C	-55 °C	Tubing, Flexible	4 to 1
TE Connectivity Aerospace, Defense and Marine RP-4800-NO.1-0-SP-CS6351	95 °C	Polyolefin (PO), Irradiated	25.4 mm	1 in	0.275 in	6.99 mm			Abrasion Resistant, Chemical Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant	0.045 in	1.14 mm	144 Months	Black	135 °C	-55 °C	Tubing, Flexible	4 to 1
TE Connectivity Aerospace, Defense and Marine RP-4800-NO.11-0-SP-CS7710	95 °C	Polyolefin (PO), Irradiated			0.18 in	4.57 mm			Abrasion Resistant, Chemical Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant	0.045 in	1.14 mm	144 Months	Black	135 °C	-55 °C	Tubing, Flexible	4 to 1
TE Connectivity Aerospace, Defense and Marine RP-4800-NO.10-0-SP-CS6493	95 °C	Polyolefin (PO), Irradiated	38.1 mm	1.5 in	0.375 in	9.53 mm			Abrasion Resistant, Chemical Resistant, Flame Retardant, Fluid Resistant, Solvent Resistant	0.045 in	1.14 mm	144 Months	Black	135 °C	-55 °C	Tubing, Flexible	4 to 1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RP-48 Series

Heat Shrink Tubing, Flexible 2.000" (50.80mm) 4 to 1 Black 4.00' (1.22m)
