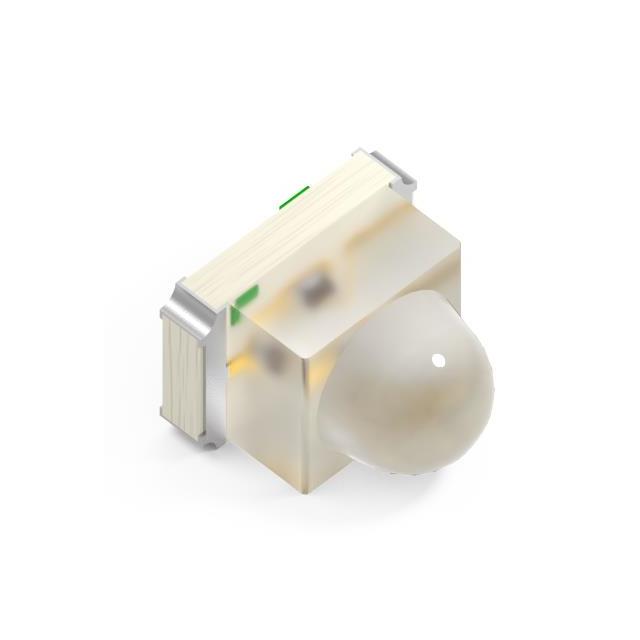

XZM2CRK50W-2
ActiveSunLED
LED RED CLEAR 2SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZM2CRK50W-2
ActiveSunLED
LED RED CLEAR 2SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZM2CRK50W-2 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 2 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 1.9 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 10 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Dominant | 625 nm |
| Wavelength - Peak [custom] | 640 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.60 | |
| 10 | $ 0.39 | |||
| 100 | $ 0.26 | |||
| 1000 | $ 0.20 | |||
| Digi-Reel® | 1 | $ 0.60 | ||
| 10 | $ 0.39 | |||
| 100 | $ 0.26 | |||
| 1000 | $ 0.20 | |||
| Tape & Reel (TR) | 2000 | $ 0.15 | ||
Description
General part information
XZM2CRK50 Series
Red 625nm LED Indication - Discrete 2.2V 2-SMD, No Lead
