APR27-27-12CB/A01

Active

Tusonix a Subsidiary of CTS Electronic Components

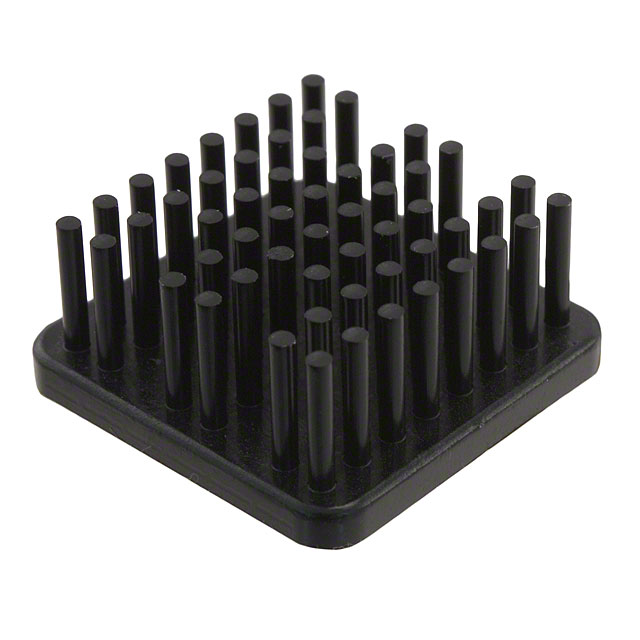

HEATSINK FORGED W/THERMAL TAPE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet A01 Laminating Adhesive

APR27-27-12CB/A01

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK FORGED W/THERMAL TAPE

Deep-Dive with AI

DocumentsDatasheet A01 Laminating Adhesive

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APR27-27-12CB/A01

Attachment Method	Thermal Tape, Adhesive (Included)
Length [x]	26.6 mm
Length [x]	1.047 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Pin Fins
Shelf Life	24 Months
Thermal Resistance @ Forced Air Flow	5.3 °C/W, 200 LFM
Type	Top Mount
Width [x]	26.6 mm
Width [x]	1.047 "

APR27 Series

Part	Attachment Method	Material Finish	Shape	Width [x]	Width [x]	Package Cooled	Length [x]	Length [x]	Thermal Resistance @ Forced Air Flow	Material	Type	Shelf Life	Thermal Resistance @ Natural	Fin Height	Fin Height	Fin Height [z]	Fin Height [z]
Tusonix a Subsidiary of CTS Electronic Components APR27-27-12CB/S	Clip	Black Anodized	Pin Fins Square	26.6 mm	1.047 "	ASIC BGA CPU LGA	26.6 mm	1.047 in	5.3 °C/W 200 LFM	Aluminum	Top Mount
Tusonix a Subsidiary of CTS Electronic Components APR27-27-33CB/A01	Thermal Tape Adhesive (Included)	Black Anodized	Pin Fins Square	26.6 mm	1.047 "	ASIC BGA CPU LGA	26.6 mm	1.047 in	3.2 °C/W 200 LFM	Aluminum Alloy	Top Mount	24 Months	10.31 °C/W	1.283 "	32.6 mm
Tusonix a Subsidiary of CTS Electronic Components APR27-27-12CB/M	Clip	Black Anodized	Pin Fins Square	26.6 mm	1.047 "	ASIC BGA CPU LGA	26.6 mm	1.047 in	5.3 °C/W 200 LFM	Aluminum	Top Mount
Tusonix a Subsidiary of CTS Electronic Components APR27-27-23CB/A01	Thermal Tape Adhesive (Included)	Black Anodized	Pin Fins Square	26.6 mm	1.047 "	ASIC BGA CPU LGA	26.6 mm	1.047 in	3.66 °C/W 200 LFM	Aluminum Alloy	Top Mount	24 Months	11.63 °C/W	0.89 in	22.61 mm
Tusonix a Subsidiary of CTS Electronic Components APR27-27-21CB/A01	Thermal Tape Adhesive (Included)	Black Anodized	Pin Fins Square	26.6 mm	1.047 "	ASIC BGA CPU LGA	26.6 mm	1.047 in		Aluminum Alloy	Top Mount	24 Months	12.05 °C/W			20.6 mm	0.811 in
Tusonix a Subsidiary of CTS Electronic Components APR27-27-28CB/A01	Thermal Tape Adhesive (Included)	Black Anodized	Pin Fins Square	26.6 mm	1.047 "	ASIC BGA CPU LGA	26.6 mm	1.047 in	3.4 °C/W	Aluminum Alloy	Top Mount	24 Months	10.79 °C/W			27.6 mm	1.087 in
Tusonix a Subsidiary of CTS Electronic Components APR27-27-12CB/A01	Thermal Tape Adhesive (Included)	Black Anodized	Pin Fins Square	26.6 mm	1.047 "	ASIC BGA CPU LGA	26.6 mm	1.047 in	5.3 °C/W 200 LFM	Aluminum	Top Mount	24 Months
Tusonix a Subsidiary of CTS Electronic Components APR27-27-15CB/A01	Thermal Tape Adhesive (Included)	Black Anodized	Pin Fins Square	26.6 mm	1.047 "	ASIC BGA CPU LGA	26.6 mm	1.047 in	4.7 °C/W 200 LFM	Aluminum	Top Mount	24 Months	12.1 °C/W			14.6 mm	0.575 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.96
		10	$ 6.16
		25	$ 5.87
		50	$ 5.66
		100	$ 5.45
		250	$ 5.10
		300	$ 5.14
		500	$ 5.01
		1000	$ 4.82

Description

General part information

APR27 Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount

Documents

Technical documentation and resources

Datasheet

A01 Laminating Adhesive

Datasheet
