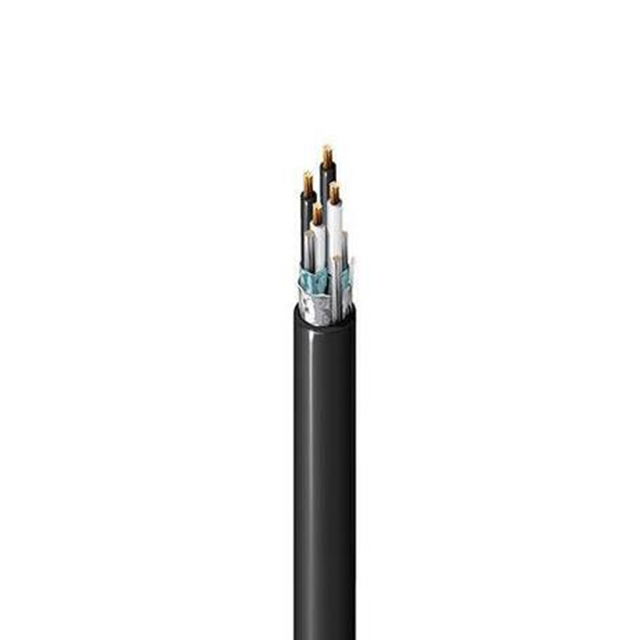

1052A 0107500

Active

Belden Inc.

MULTI-PAIR 32COND 18AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 32COND 18AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1052A 0107500

Cable Type	Multi-Pair
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	22.81 mm
Jacket (Insulation) Diameter [diameter]	0.898 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.084 in
Jacket (Insulation) Thickness	2.134 mm
Jacket Color	Black
Length [x]	7500 ft
Length [x]	2286 m
Number of Conductors	32
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	18 AWG

MULTI-PAIR 32COND 18AWG

Part	Conductor Material	Shield Coverage	Number of Conductors	Conductor Insulation	Shield Type	Features	Wire Gauge	Cable Type	Length [x]	Length [x]	Jacket Color	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 1052A 0107500	Copper, Bare	100 %	32	Nylon, Poly-Vinyl Chloride (PVC), Polyamide (PA)	Foil	Drain Wire, Rip Cord	18 AWG	Multi-Pair	7500 ft	2286 m	Black	Aluminum	0.084 in	2.134 mm	Poly-Vinyl Chloride (PVC)	22.81 mm	0.898 "	26 AWG	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	7500	$ 13.47

General part information

32 (16 Pair Twisted) Conductor Multi-Pair Cable Black 18 AWG Foil 7500' (2286.0m)
