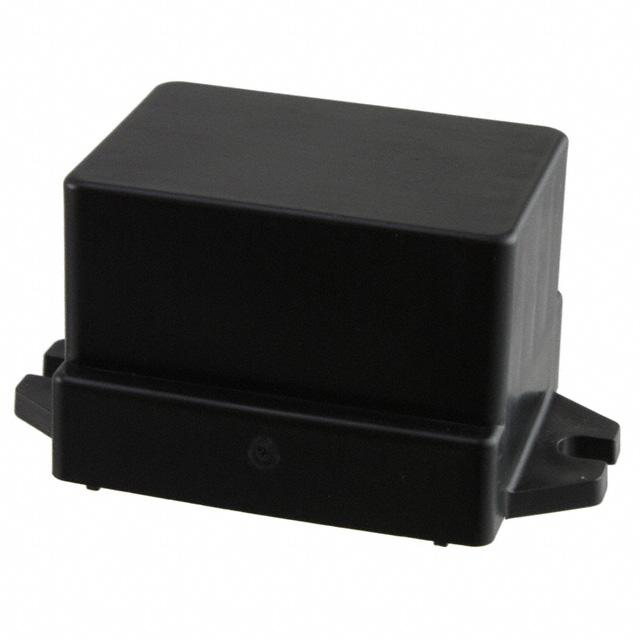

AEP31012

Panasonic Electric Works

RELAY AUTO SPST 10A 12V

Search across all available documentation for this part.

Panasonic Electric Works

RELAY AUTO SPST 10A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Rating (Current)	Termination Style	Coil Current	Coil Voltage	Relay Type	Release Time	Operate Time	Contact Form	Load - Max Switching [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Must Operate Voltage	Must Release Voltage	Mounting Type	Coil Type	Switching Voltage	Coil Resistance	Seal Rating
Panasonic Electric Works AEP31048	10 A	PC Pin	26 mA	48 VDC	General Purpose	30 ms	50 ms	SPST-NO (1 Form A)	2770 VA	-40 °C	80 C	36 VDC	3.84 VDC	Through Hole	Non Latching	277 VAC 400 VDC	923.08 Ohms	Sealed - Hermetically
Panasonic Electric Works AEP310X0	10 A	PC Pin	12 mA	100 VDC	General Purpose	30 ms	50 ms	SPST-NO (1 Form A)	27700 VA	-40 °C	80 C	75 VDC	8 VDC	Through Hole	Non Latching	277 VAC 400 VDC	8.33 kOhms	Sealed - Hermetically
Panasonic Electric Works AEP31012	10 A	PC Pin	103 mA	12 VDC	General Purpose	30 ms	50 ms	SPST-NO (1 Form A)	2770 VA	-40 °C	80 C	9 VDC	0.96 VDC	Through Hole	Non Latching	277 VAC 400 VDC	116.5 Ohms	Sealed - Hermetically

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 88.49
