EXB220TN
ActiveTE Connectivity Raychem Cable Protection

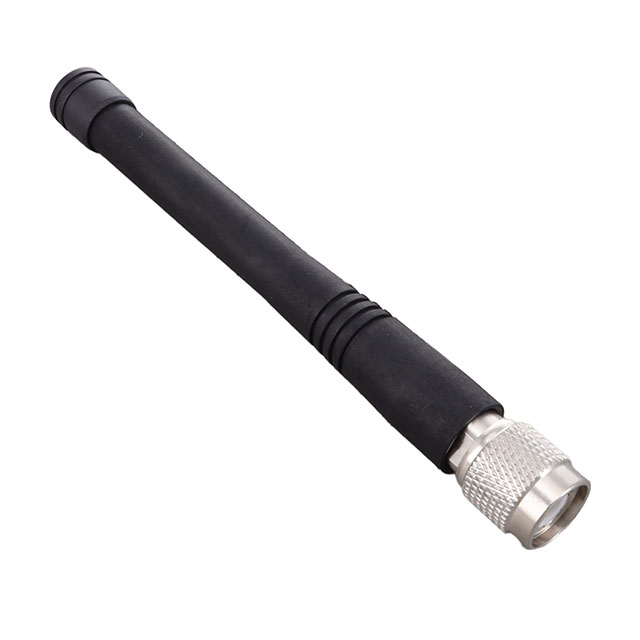

RF ANT 222MHZ WHIP STR TNC MALE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EXB220TN
ActiveTE Connectivity Raychem Cable Protection
RF ANT 222MHZ WHIP STR TNC MALE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EXB220TN |
|---|---|
| Antenna Type | Whip, Straight |
| Frequency (Center/Band) | 222 MHz |
| Frequency Group | VHF |
| Frequency Range [Max] | 225 MHz |
| Frequency Range [Min] | 220 MHz |
| Gain | 0 dBi |
| Height (Max) | 124.46 mm |
| Height (Max) [Max] | 4.9 in |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Termination | TNC Male |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.79 | |
| 10 | $ 16.70 | |||
| 25 | $ 15.14 | |||
| 100 | $ 13.40 | |||
| 250 | $ 12.56 | |||
| 500 | $ 12.34 | |||
Description
General part information
EXB220 Series
RF ANTENNA Whip, Straight TNC Male Connector Mount
