5524UL 002U1000

Active

Belden Inc.

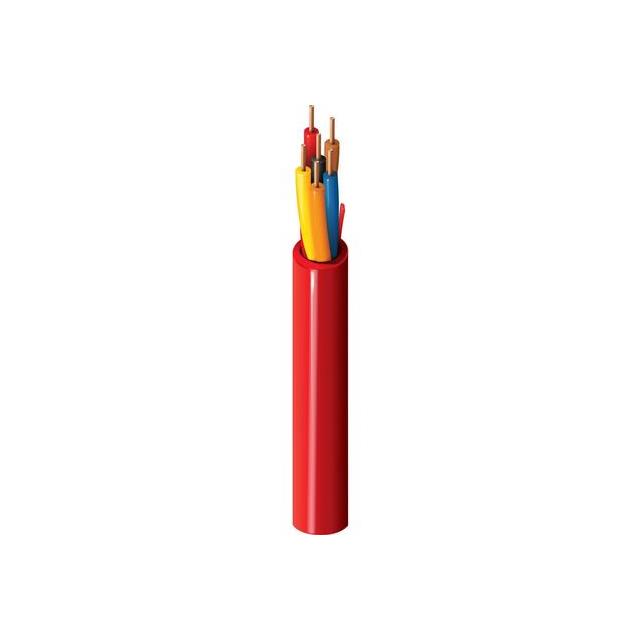

CABLE 6COND 22AWG RED 1000'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 6COND 22AWG RED 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	5524UL 002U1000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	4.27 mm
Jacket (Insulation) Diameter [diameter]	0.168 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	6
Ratings	UL Style FPLR
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	22 AWG

Part	Features	Cable Type	Voltage	Number of Conductors	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Conductor Strand	Ratings	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Conductor Insulation	Conductor Material	Jacket Color
Belden Inc. 5524UL 002U1000	Drain Wire Rip Cord	Multi-Conductor	300 V	6	1000 ft	304.8 m	0.015 in	0.381 mm	Alarm Safety	Solid	UL Style FPLR	Poly-Vinyl Chloride (PVC) Riser	4.27 mm	0.168 in	22 AWG	Polypropylene (PP)	Copper Bare	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 Conductor Multi-Conductor Cable Red 22 AWG 1000.0' (304.8m)
