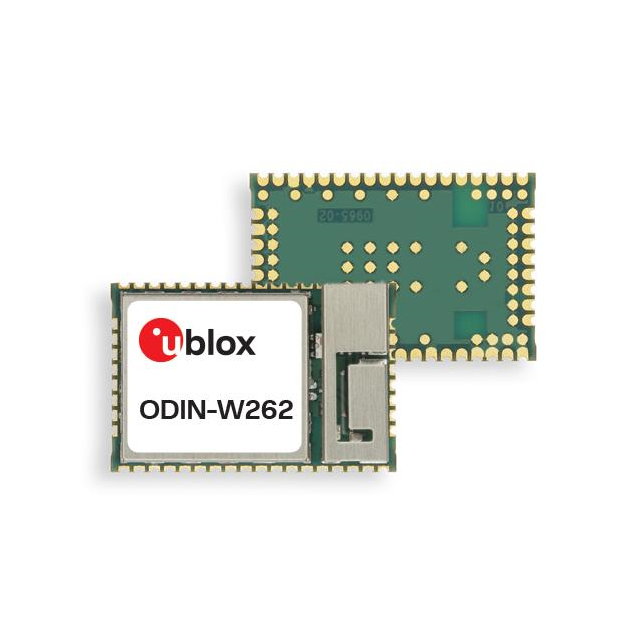

ODIN-W262-06B

Active

u-blox

RF TXRX MOD BT WIFI CHIP SMD

Search across all available documentation for this part.

Active

u-blox

RF TXRX MOD BT WIFI CHIP SMD

Technical Specifications

Parameters and characteristics for this part

Part	Sensitivity	Voltage - Supply [Max]	Voltage - Supply [Min]	Serial Interfaces	Current - Transmitting	Operating Temperature [Max]	Operating Temperature [Min]	Modulation	Package / Case	Frequency [Min]	Frequency [Max]	Power - Output	Antenna Type	Current - Receiving	Protocol	Data Rate	Mounting Type	RF Family/Standard	Memory Size	Utilized IC / Part
u-blox ODIN-W262-04B	-95 dBm	3.6 V	3 V	ADC GPIO I2C SPI UART	250 mA	85 °C	-40 °C	4DQPSK 8DPSK CCK DSSS GFSK OFDM	52-SMD Module	2.4 GHz 5.18 GHz	2.5 GHz 5.825 GHz	18 dBm	Antenna Not Included	140 mA	802.11a/b/g/n Bluetooth v4.0 +EDR	130 Mbps	Surface Mount	Bluetooth WiFi
u-blox ODIN-W262-05X	-95 dBm	3.6 V	3 V	UART	250 mA	85 °C	-40 °C	4DQPSK 8DPSK CCK DSSS GFSK OFDM	52-SMD Module	2.4 GHz 5.18 GHz	2.5 GHz 5.825 GHz	15 dBm	Integrated Chip	140 mA	802.11a/b/g/n Bluetooth v4.0 +EDR	130 Mbps	Surface Mount	Bluetooth WiFi	2 MB 256 kB	STM32 TI WL8
u-blox ODIN-W262-05B	-95 dBm	3.6 V	3 V	UART	250 mA	85 °C	-40 °C	4DQPSK 8DPSK CCK DSSS GFSK OFDM	52-SMD Module	2.4 GHz 5.18 GHz	2.5 GHz 5.825 GHz	15 dBm	Integrated Chip	140 mA	802.11a/b/g/n Bluetooth v4.0 +EDR	130 Mbps	Surface Mount	Bluetooth WiFi
u-blox ODIN-W262-06B	-95 dBm	3.6 V	3 V	ADC GPIO I2C SPI UART	250 mA	85 °C	-40 °C	4DQPSK 8DPSK CCK DSSS GFSK OFDM	52-SMD Module	2.4 GHz 5.18 GHz	2.5 GHz 5.825 GHz	18 dBm	Integrated Chip	140 mA	802.11a/b/g/n Bluetooth v4.0 +EDR	130 Mbps	Surface Mount	Bluetooth WiFi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bluetooth, WiFi 802.11a/b/g/n, Bluetooth v4.0 +EDR Transceiver Module 2.4GHz ~ 2.5GHz, 5.18GHz ~ 5.825GHz Integrated, Chip Surface Mount
