637-20ABPE

Active

Wakefield-Vette

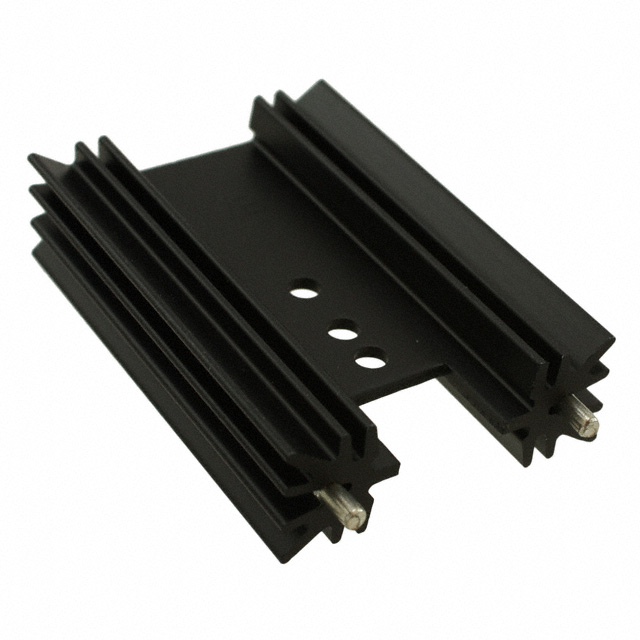

HEATSINK TO-220 VERT MT BLK 2"

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK TO-220 VERT MT BLK 2"

Technical Specifications

Parameters and characteristics for this part

Specification	637-20ABPE

Attachment Method	Board Mounts, Bolt On
Fin Height [z]	12.7 mm
Fin Height [z]	0.5 in
Length	50.8 mm
Length	2 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	55 °C, 6 W
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	4.7 °C/W, 200 LFM
Type	Board Level, Vertical
Width	34.93 mm
Width	1.375 "

Part	Width	Width	Length	Length	Material Finish	Attachment Method	Package Cooled	Type	Material	Power Dissipation @ Temperature Rise	Thermal Resistance @ Forced Air Flow	Shape	Fin Height [z]	Fin Height [z]
Wakefield-Vette 637-20ABPE	34.93 mm	1.375 "	50.8 mm	2 in	Black Anodized	Board Mounts Bolt On	TO-220	Board Level Vertical	Aluminum	6 W 55 °C	4.7 °C/W 200 LFM	Rectangular Fins	12.7 mm	0.5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-220 Aluminum 6.0W @ 55°C Board Level, Vertical
