ANS-I-7.5A

Active

OptiFuse

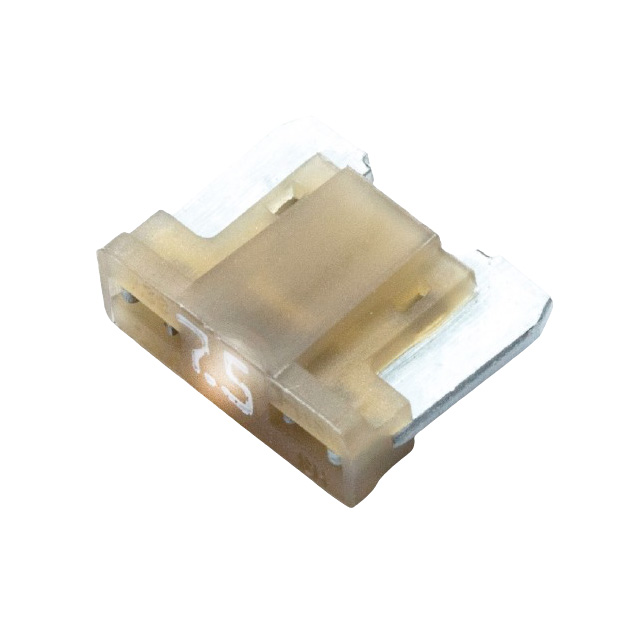

FUSE AUTO 7.5A 32VDC BLADE MINI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ANS-I-7.5A

Active

OptiFuse

FUSE AUTO 7.5A 32VDC BLADE MINI

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.91
		10	$ 2.82
		25	$ 2.75
		50	$ 2.31
		100	$ 1.89
		250	$ 1.71
		500	$ 1.44
		1000	$ 1.25

Description

General part information

ANS-I Series

7.5 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature (Low Profile)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ANS-I-7.5A	ANS-I Series

Approval Agency	ISO, SAE	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA	1 kA
Color	Brown	Pink, Brown, Green, Blue, Violet, Red, Clear, Tan, Yellow
Current Rating (Amps)	7.5 A	3 - 30 A
Fuse Type	Automotive	Automotive
Mounting Type	Requires Holder	Requires Holder
Package / Case	Blade, Miniature (Low Profile)	Blade, Miniature (Low Profile)
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	0.433 in	0.433 in
Size / Dimension [x]	11 mm	11 mm
Size / Dimension [y]	3.91 mm	3.91 mm
Size / Dimension [y]	0.154 in	0.154 in
Size / Dimension [z]	8.75 mm	8.75 mm
Size / Dimension [z]	0.344 in	0.344 in
Voltage Rating - DC	32 V	32 V

ANS-I Series

FUSE AUTOMOTIVE 4A 32VDC BLADE

Part	Fuse Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Breaking Capacity @ Rated Voltage	Mounting Type	Color	Voltage Rating - DC	Current Rating (Amps)	Response Time	Approval Agency	Package / Case
OptiFuse ANS-I-4A	Automotive	8.75 mm	3.91 mm	0.344 in	0.433 in	11 mm	0.154 in	1 kA	Requires Holder	Pink	32 V	4 A	Fast Blow	ISO, SAE	Blade, Miniature (Low Profile)
OptiFuse ANS-I-7.5A	Automotive	8.75 mm	3.91 mm	0.344 in	0.433 in	11 mm	0.154 in	1 kA	Requires Holder	Brown	32 V	7.5 A	Fast Blow	ISO, SAE	Blade, Miniature (Low Profile)
OptiFuse ANS-I-30A	Automotive	8.75 mm	3.91 mm	0.344 in	0.433 in	11 mm	0.154 in	1 kA	Requires Holder	Green	32 V	30 A	Fast Blow	ISO, SAE	Blade, Miniature (Low Profile)
OptiFuse ANS-I-15A	Automotive	8.75 mm	3.91 mm	0.344 in	0.433 in	11 mm	0.154 in	1 kA	Requires Holder	Blue	32 V	15 A	Fast Blow	ISO, SAE	Blade, Miniature (Low Profile)
OptiFuse ANS-I-3A	Automotive	8.75 mm	3.91 mm	0.344 in	0.433 in	11 mm	0.154 in	1 kA	Requires Holder	Violet	32 V	3 A	Fast Blow	ISO, SAE	Blade, Miniature (Low Profile)
OptiFuse ANS-I-10A	Automotive	8.75 mm	3.91 mm	0.344 in	0.433 in	11 mm	0.154 in	1 kA	Requires Holder	Red	32 V	10 A	Fast Blow	ISO, SAE	Blade, Miniature (Low Profile)
OptiFuse ANS-I-25A	Automotive	8.75 mm	3.91 mm	0.344 in	0.433 in	11 mm	0.154 in	1 kA	Requires Holder	Clear	32 V	25 A	Fast Blow	ISO, SAE	Blade, Miniature (Low Profile)
OptiFuse ANS-I-5A	Automotive	8.75 mm	3.91 mm	0.344 in	0.433 in	11 mm	0.154 in	1 kA	Requires Holder	Tan	32 V	5 A	Fast Blow	ISO, SAE	Blade, Miniature (Low Profile)
OptiFuse ANS-I-20A	Automotive	8.75 mm	3.91 mm	0.344 in	0.433 in	11 mm	0.154 in	1 kA	Requires Holder	Yellow	32 V	20 A	Fast Blow	ISO, SAE	Blade, Miniature (Low Profile)
