ITCSF-0400-48"-BLACK-20 PCS

Active

HEATSHRINK ITCSF

Search across all available documentation for this part.

Active

HEATSHRINK ITCSF

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ITCSF-0400-48"-BLACK-20 PCS	ITCSF Series

Color	Black	Black
Features	Flame Retardant	Flame Retardant
Inner Diameter - Recovered [diameter]	3.81 mm	3.81 - 16.51 mm
Inner Diameter - Recovered [diameter]	0.15 "	0.15 - 0.65 in
Inner Diameter - Supplied [diameter]	0.4 in	0.4 - 2 in
Inner Diameter - Supplied [diameter]	10.16 mm	10.16 - 50.8 mm
Length [x]	1.22 m	1.22 m
Length [x]	4 ft	4 ft
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shrinkage Ratio [Max]	3	3
Shrinkage Ratio [Min]	1	1
Type	Tubing, Flexible	Tubing, Flexible

HEATSHRINK ITCSF

Part	Features	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Length [x]	Length [x]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Material	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Color
3M ITCSF-1100-48"-BLACK-20 PCS	Flame Retardant	1.1 in	27.94 mm	Tubing, Flexible	1.22 m	4 ft	1	3	Polyolefin (PO)	-55 °C	110 °C	9.4 mm	0.37 in	Black
3M ITCSF-2000-48"-BLACK-10 PCS	Flame Retardant	2 in	50.8 mm	Tubing, Flexible	1.22 m	4 ft	1	3	Polyolefin (PO)	-55 °C	110 °C	16.51 mm	0.65 "	Black
3M ITCSF-0400-48"-BLACK-20 PCS	Flame Retardant	0.4 in	10.16 mm	Tubing, Flexible	1.22 m	4 ft	1	3	Polyolefin (PO)	-55 °C	110 °C	3.81 mm	0.15 "	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 28.74

General part information

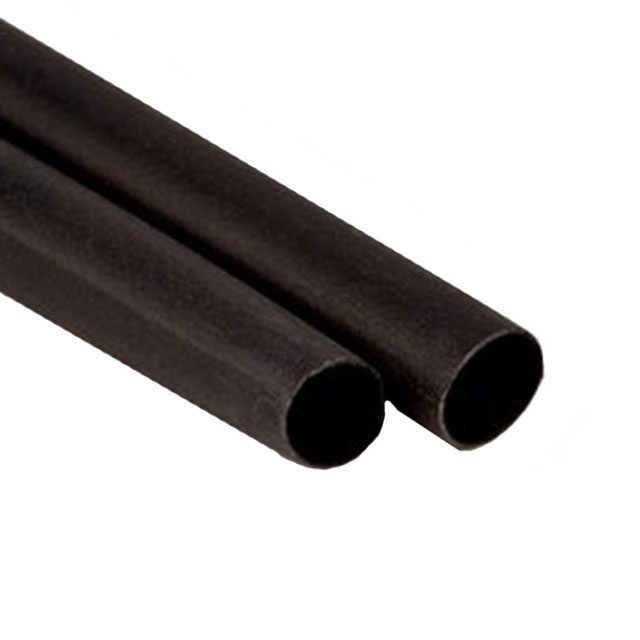

Heat Shrink Tubing, Flexible 0.400" (10.16mm) 3 to 1 Black 4.00' (1.22m)

Technical documentation and resources

No documents available
