Specification	XCVU190-3FLGC2104E

Mounting Type	Surface Mount
Number of I/O	416
Number of LABs/CLBs	134280
Number of Logic Elements/Cells	2349900
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	0 °C
Package / Case	2104-BBGA, FCBGA
Package Length	47.5 mm
Package Name	2104-FCBGA
Package Width	47.5 mm
Total RAM Bits	150937600 bits
Voltage - Supply (Maximum)	1.03 V
Voltage - Supply (Minimum)	0.97 V

XCVU190 Series

Part	Mounting Type	Number of LABs/CLBs	Number of I/O	Total RAM Bits	Number of Logic Elements/Cells	Package Name	Package Width	Package Length	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	For Use With/Related Products	Suggested Programming Environment	Interconnect System	P/N Breakdown	Type	Utilized IC / Part	Contents	Platform
AMD / Xilinx XCVU190-3FLGA2577E	Surface Mount	134280	448	150937600 bits	2349900	2577-FCBGA	52.5 mm	52.5 mm	2577-BBGA FCBGA	100 °C	0 °C	0.97 V	1.03 V
AMD / Xilinx XCVU190-3FLGB2104E	Surface Mount	134280	702	150937600 bits	2349900	2104-FCBGA	47.5 mm	47.5 mm	2104-BBGA FCBGA	100 °C	0 °C	0.97 V	1.03 V
AMD / Xilinx XCVU190-3FLGC2104E	Surface Mount	134280	416	150937600 bits	2349900	2104-FCBGA	47.5 mm	47.5 mm	2104-BBGA FCBGA	100 °C	0 °C	0.97 V	1.03 V
AMD / Xilinx XCVU190-2FLGA2577E	Surface Mount	134280	448	150937600 bits	2349900	2577-FCBGA	52.5 mm	52.5 mm	2577-BBGA FCBGA	100 °C	0 °C	0.922 V	0.979 V
AMD / Xilinx DK-U1-VCU110-ES-G-J														XCVU190	Vivado	FMC Pmod	J = Japan version does not ship with a power supply	FPGA	XCVU190	Board Cable(s) - Power Supply Not Included -	Virtex UltraScale FPGA VCU110 ES Japan

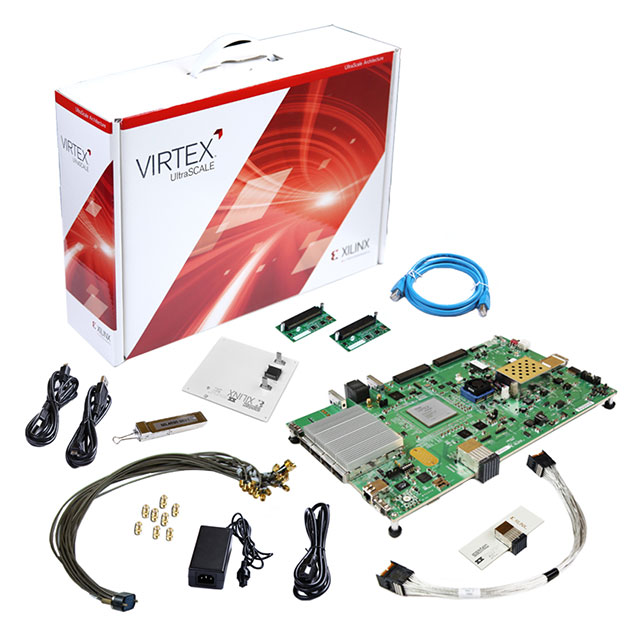

AMD / Xilinx DK-U1-VCU110-G														XCVU190	Vivado	FMC Pmod		FPGA	XCVU190	Board Cable Power Supply	Virtex UltraScale FPGA VCU110
