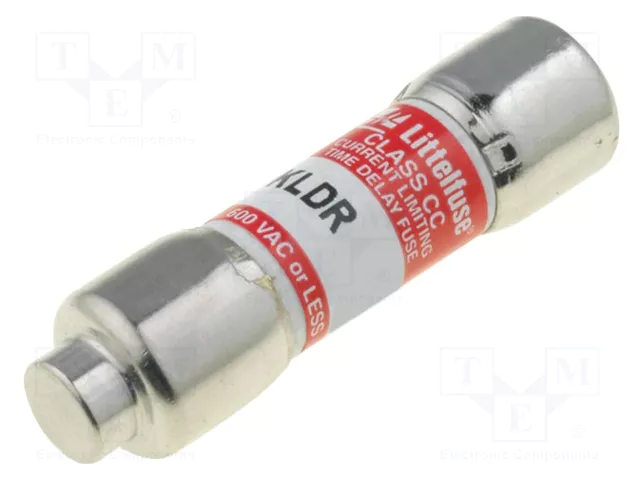

KLDR03.5HXP
ActiveLITTELFUSE
FUS 600V T/D CLASS CC 3.5A 100PK ROHS/ BULK
KLDR03.5HXP
ActiveLITTELFUSE
FUS 600V T/D CLASS CC 3.5A 100PK ROHS/ BULK
Description
General part information
KLDR03.5 Series
KLDR03.5 is a Class CC fuse with an ampere rating of 3.5.
Technical Specifications
Parameters and characteristics for this part
| Specification | KLDR03.5HXP |
|---|---|
| Applications | Transformer Protection |
| Approval Agency | CE, UL, CSA |
| Breaking Capacity (AC) | 200 kA |
| Breaking Capacity (DC) | 20 kA |
| Class | CC |
| Current Rating | 3.5 A |
| Fuse Type | Cartridge |
| Mounting Type | Requires Holder |
| Package / Case | 5AG, 10mm x 38mm (Midget) |
| Package Features | Midget |
| Package Length | 10 mm |
| Package Name | 5AG Midget, 5AG |
| Package Width | 38 mm |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.406 in |
| Size / Dimension Length | 1.5 in |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 300 V |
