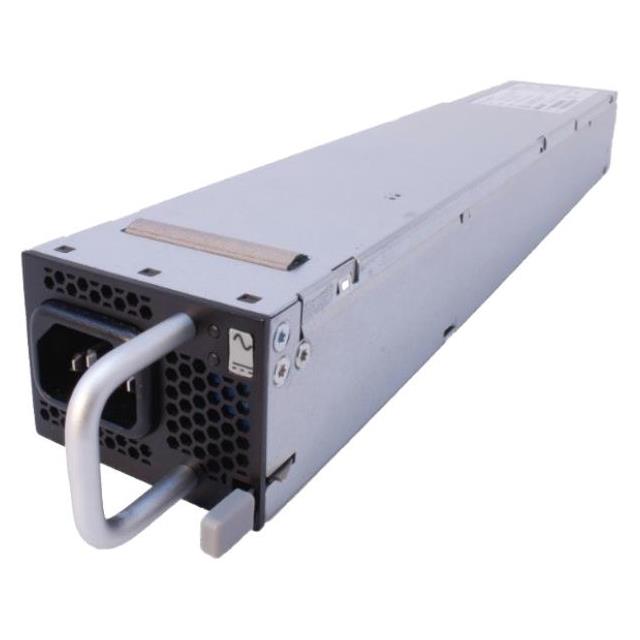

PFE1100-12-054RA

Active

Bel Power Solutions

AC/DC CONVERTER 12V 5V 1100W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 12V 5V 1100W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PFE1100-12-054RA	PFE1100 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, NEMKO	CE, CB, CQC, cCSAus, NEMKO, KC, CCC
Current - Output (Max)	-	90 A
Current - Output 1	90 A	90 A
Current - Output 2	3.3 A	3.3 A
Efficiency	94 %	94 %
Features	Remote On/Off, Standby Output, I2C Interface, PMBus™, Adjustable Output, Remote Sense, Load Sharing, PFC, Hot Swappable	Remote On/Off, Standby Output, I2C Interface, PMBus™, Adjustable Output, Remote Sense, Load Sharing, PFC, Hot Swappable
Mounting Type	Rack Mount	Rack Mount
Number of Outputs	2	1 - 2
Operating Temperature [Max]	70 °C	45 - 70 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	1100 W	1100 W
Size / Dimension [x]	14.28 "	12.66 - 14.28 in
Size / Dimension [x]	362.7 mm	321.5 - 362.7 mm
Size / Dimension [y]	54.5 mm	54.5 mm
Size / Dimension [y]	2.15 "	2.15 "
Size / Dimension [z]	40 mm	40 mm
Size / Dimension [z]	1.57 "	1.57 "
Standard Number	62368-1	62368-1
Type	Front End	Front End
Voltage - Input (Max)	-	72 V
Voltage - Input (Min)	-	40 V
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output 1	12 V	12 V
Voltage - Output 2	5 V	5 V

DC/DC POWER SUPPLY SINGLE-OUT 12V 90A 1080W

Part	Approval Agency	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Output 1	Number of Outputs	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Type	Applications	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output 2	Features	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Current - Output 1	Voltage - Output 2
Bel Power Solutions PFE1100-12-054ND	CB, CCC, cCSAus, CE, CQC, KC, NEMKO	72 V	Rack Mount	12 V	1	90 A	40 V	Front End	ITE (Commercial)	1100 W	45 °C	0 °C	12.66 in	2.15 "	1.57 "	54.5 mm	40 mm	321.5 mm
Bel Power Solutions PFE1100-12-054RA	CE, NEMKO		Rack Mount	12 V	2			Front End	ITE (Commercial)	1100 W	70 °C	0 °C	14.28 "	2.15 "	1.57 "	54.5 mm	40 mm	362.7 mm	3.3 A	Adjustable Output, Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output	94 %	90 VAC	264 VAC	62368-1	90 A	5 V
