0166-SS - 0166-SS-xx

0166-SS

Active

RAF Electronic Hardware

7/16HD X 15/16 X 10-32 THD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPlating,Finish Codes,Materials Options Datasheet

0166-SS - 0166-SS-xx

0166-SS

Active

RAF Electronic Hardware

7/16HD X 15/16 X 10-32 THD

Deep-Dive with AI

DocumentsPlating,Finish Codes,Materials Options Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.37
		5	$ 6.20
		10	$ 6.04
		25	$ 5.87
		50	$ 5.53
		100	$ 5.37
		250	$ 4.86
		500	$ 4.69
		1000	$ 4.53

Description

General part information

0166-S Series

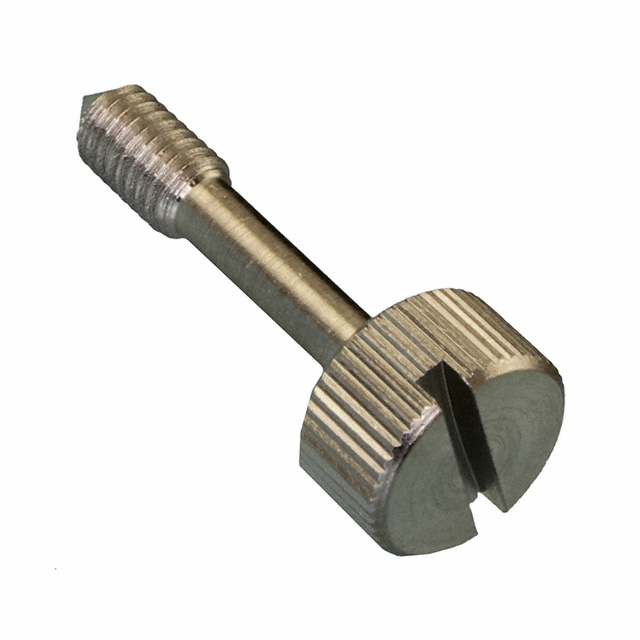

#10-32 Knob Panel Screw Slotted Drive Stainless Steel

Documents

Technical documentation and resources

Plating,Finish Codes,Materials Options

Related Document

Datasheet

Technical Specifications

Parameters and characteristics for this part

Specification	0166-SS

Drive Type	Slotted
Head Diameter [diameter]	11.11 mm
Head Diameter [diameter]	0.438 "
Head Height [z]	0.25 in
Head Height [z]	6.35 mm
Head Height [z]	0.25 in
Length - Below Head [x]	23.81 mm
Length - Below Head [x]	0.938 in
Length - Overall	30.16 mm
Length - Overall	1.188 in
Material	Stainless Steel
Screw Head Type	Knob
Thread Size	#10-32
Type	Panel Screw

0166-S Series

7/16HD X 15/16 X 10-32 THD

Part	Drive Type	Type	Head Height [z]	Head Height [z]	Head Height [z]	Screw Head Type	Thread Size	Length - Overall	Length - Overall	Material	Length - Below Head [x]	Length - Below Head [x]	Head Diameter [diameter]	Head Diameter [diameter]
RAF Electronic Hardware 0166-SS	Slotted	Panel Screw	0.25 in	6.35 mm	0.25 in	Knob	#10-32	30.16 mm	1.188 in	Stainless Steel	23.81 mm	0.938 in	11.11 mm	0.438 "
