NPPN091BFCN-RC

Active

Sullins Connector Solutions

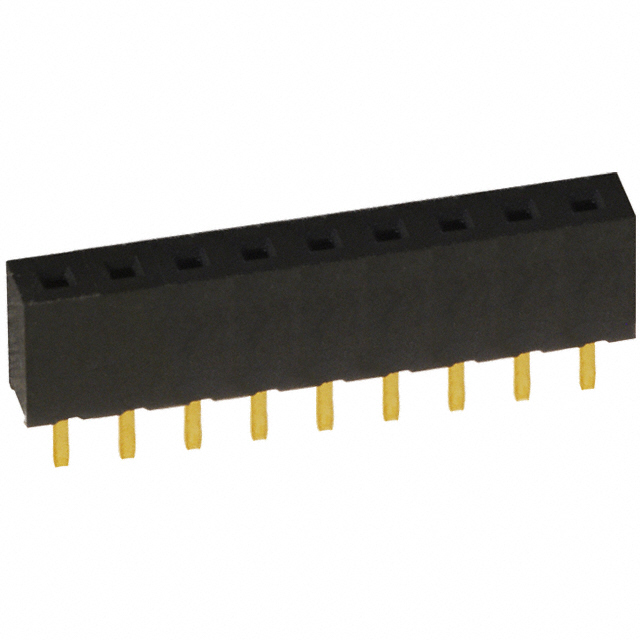

BOARD CONNECTOR, 9 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.079 INCH PITCH, SOLDER TERMINAL, LOCKING, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Sullins Connector Solutions

BOARD CONNECTOR, 9 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.079 INCH PITCH, SOLDER TERMINAL, LOCKING, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	NPPN091BFCN-RC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.173 in
Insulation Height	4.4 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Termination	Solder

Part	Contact Shape	Insulation Height	Insulation Height	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Finish - Post	Insulation Material	Termination	Contact Material	Mounting Type	Connector Type	Number of Rows	Contact Finish - Mating	Fastening Type	Contact Type	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Insulation Color	Number of Positions Loaded	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions NPPN091BFLD-RC	Square	4.6 mm	0.181 in	150 VDC	-40 °C	105 ░C	2 A	Gold	Nylon 6T Polyamide (PA6T)	Solder	Phosphor Bronze	Surface Mount	Header	1	Gold	Push-Pull	Female Socket	UL94 V-0	0.079 in	2 mm	9	Flash	Flash	Black	All
Sullins Connector Solutions NPPN091BFLC-RC	Square	4.6 mm	0.181 in	150 VDC	-40 °C	105 ░C	2 A	Gold	Nylon 6T Polyamide (PA6T)	Solder	Phosphor Bronze	Surface Mount	Header	1	Gold	Push-Pull	Female Socket	UL94 V-0	0.079 in	2 mm	9	Flash	Flash	Black	All
Sullins Connector Solutions NPPN091FGGN-RC	Square				-40 °C	105 ░C	2 A	Gold	Nylon 6T Polyamide (PA6T)	Solder	Phosphor Bronze	Through Hole Right Angle	Header	1	Gold	Push-Pull	Female Socket	UL94 V-0	0.079 in	2 mm	9	Flash	Flash	Black	All	0.122 "	3.1 mm
Sullins Connector Solutions NPPN091BFCN-RC	Square	4.4 mm	0.173 in		-40 °C	105 ░C	2 A	Gold	Nylon 6T Polyamide (PA6T)	Solder	Phosphor Bronze	Through Hole	Header	1	Gold	Push-Pull	Female Socket	UL94 V-0	0.079 in	2 mm	9	Flash	Flash	Black	All	0.094 in	2.4 mm
