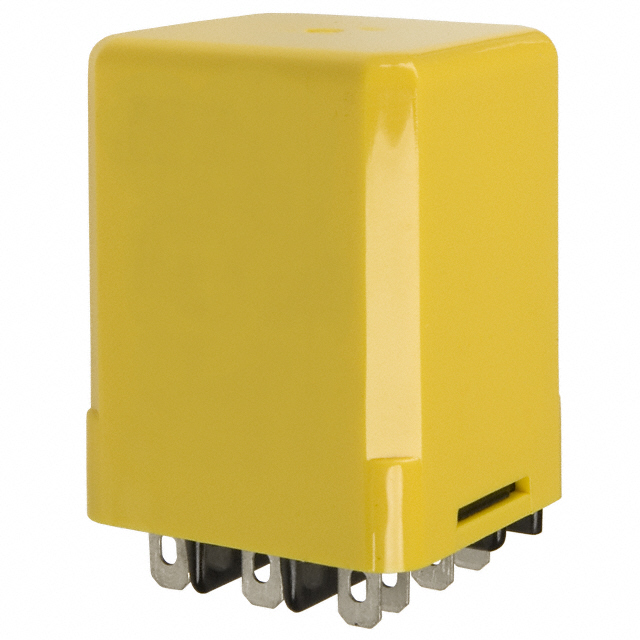

CLF-41-70120

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY TIME DELAY 120SEC 10A 277V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY TIME DELAY 120SEC 10A 277V

Technical Specifications

Parameters and characteristics for this part

Specification	CLF-41-70120

Circuit	DPDT (2 Form C)
Contact Rating @ Voltage [custom]	277 VAC
Contact Rating @ Voltage [custom]	10 A
Delay Time [Max]	120 Sec
Delay Time [Min]	1.2 Sec
Function	On-Delay
Mounting Type	Socketable
Relay Type	Mechanical Relay
Termination Style	Plug In
Timing Adjustment Method	External Resistor
Timing Initiate Method	Input Voltage
Voltage - Supply	120 VAC

Part	Termination Style	Circuit	Mounting Type	Function	Delay Time [Max]	Delay Time [Min]	Timing Adjustment Method	Relay Type	Timing Initiate Method	Voltage - Supply	Contact Rating @ Voltage [custom]	Contact Rating @ Voltage [custom]
TE Connectivity Potter & Brumfield Relays CLF-41-70120	Plug In	DPDT (2 Form C)	Socketable	On-Delay	120 Sec	1.2 Sec	External Resistor	Mechanical Relay	Input Voltage	120 VAC	277 VAC	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

On-Delay Time Delay Relay DPDT (2 Form C) 1.2 Sec ~ 120 Sec Delay 10A @ 277VAC Socketable
