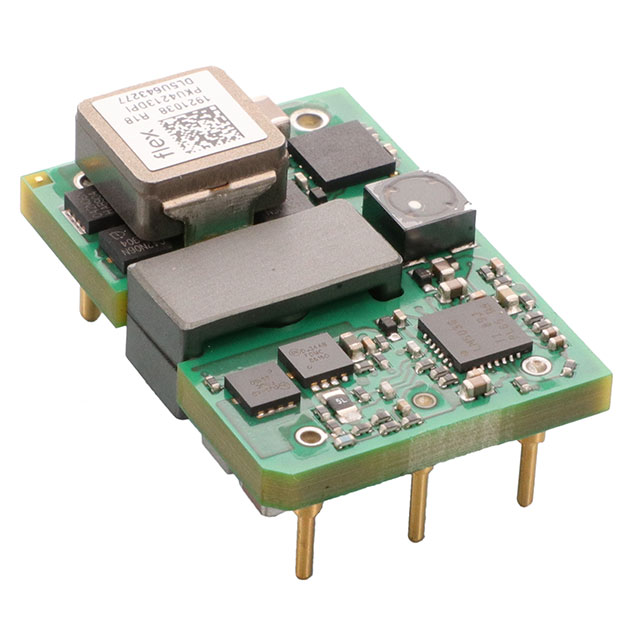

PKU4213DPI

Active

Flex Power Modules

DC DC CONVERTER 12V 180W

Search across all available documentation for this part.

Active

Flex Power Modules

DC DC CONVERTER 12V 180W

Technical Specifications

Parameters and characteristics for this part

Specification	PKU4213DPI

Applications	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable
Current - Output (Max) [Max]	15 A
Efficiency	94.6 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Sixteenth Brick
Power (Watts)	180 W
Size / Dimension [x]	1.3 "
Size / Dimension [x]	33 mm
Size / Dimension [y]	22.9 mm
Size / Dimension [y]	0.9 "
Size / Dimension [z]	11.3 mm
Size / Dimension [z]	0.44 "
Standard Number	62368-1
Supplier Device Package	Sixteenth Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	12 V

Part	Package / Case	Type	Applications	Voltage - Output 1	Features	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency	Voltage - Input (Min) [Min]	Supplier Device Package	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Power (Watts)	Mounting Type	Voltage - Isolation	Standard Number
Flex Power Modules PKU4217DPI	Sixteenth Brick	Intermediate Bus Converter	ITE (Commercial)	10.4 V	Adjustable Output Remote On/Off	1	1.3 "	11.3 mm	22.9 mm	33 mm	0.9 "	0.44 "	CB CSA IEC TUV UL	36 V	Sixteenth Brick	96.1 %	125 °C	-40 °C	Active Low Enable	60 V	25 A	260 W	Through Hole	2250 VDC	62368-1
Flex Power Modules PKU4213DPI	Sixteenth Brick	Isolated Module	ITE (Commercial)	12 V	Adjustable Output Remote On/Off Remote Sense	1	1.3 "	11.3 mm	22.9 mm	33 mm	0.9 "	0.44 "	CB CSA IEC TUV UL	36 V	Sixteenth Brick	94.6 %	125 °C	-40 °C	Active Low Enable	75 V	15 A	180 W	Through Hole	2250 VDC	62368-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 15A 36V - 75V Input
