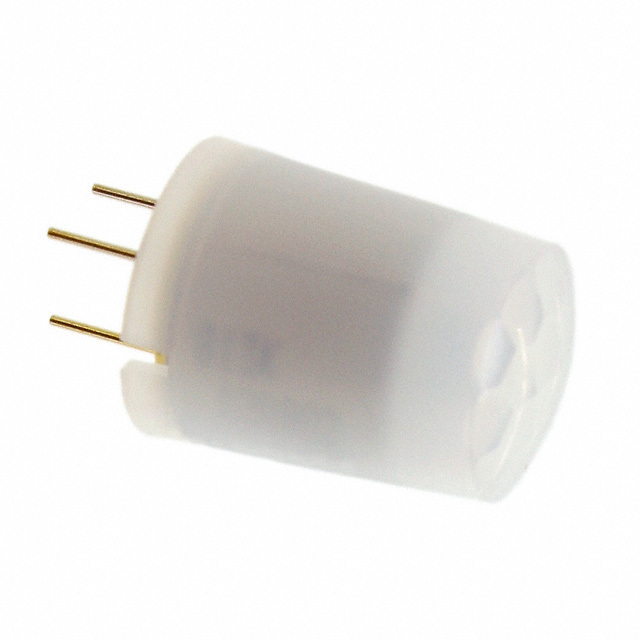

EKMB1301111K
ActivePanasonic Electric Works
SENSOR PIR
Deep-Dive with AI
Search across all available documentation for this part.
EKMB1301111K
ActivePanasonic Electric Works
SENSOR PIR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EKMB1301111K |
|---|---|
| Detection Pattern | Standard |
| Features | White, Standard Lens |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Sensing Distance | 197 in |
| Sensing Distance | 5 m |
| Sensing Distance | 16.4 ft |
| Sensor Type | PIR (Passive Infrared) |
| Trigger Type | Internal |
| Voltage - Supply [Max] | 4 V |
| Voltage - Supply [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.60 | |
| 5 | $ 16.96 | |||
| 10 | $ 16.35 | |||
| 25 | $ 15.62 | |||
| 50 | $ 15.12 | |||
| 100 | $ 14.66 | |||
| 500 | $ 13.74 | |||
Description
General part information
EKMB1301111 Series
Sensor PIR (Passive Infrared) 197" (5m) 16.4' Standard Lens, White
Documents
Technical documentation and resources
