IQS624/5EV04-S

Active

Azoteq (Pty) Ltd

DEVELOPMENT DATA ACQUISITION

Search across all available documentation for this part.

Active

Azoteq (Pty) Ltd

DEVELOPMENT DATA ACQUISITION

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IQS624/5EV04-S	IQS624 Series

Contents	Board(s)	Board(s)
Embedded	-	False
Function	Capacitive, Hall Effect, Inductive	Capacitive, Hall Effect, Inductive
Interface	-	I2C
Operating Temperature	-	85 °C
Operating Temperature	-	-20 C
Output Type	-	I2C
Platform	Arduino	Arduino
Sensor Type	-	Capacitive, Hall Effect, Proximity/Touch
Supplied Contents	-	Board(s)
Type	Sensor	Sensor
Utilized IC / Part	IQS625, IQS624	IQS625, IQS624
Voltage - Supply	-	3.6 V
Voltage - Supply	-	2 V

SENSOR MULT CAPACITIVE/HALL EFF

Part	Sensor Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Type	Contents	Function	Utilized IC / Part	Platform	Supplied Contents	Voltage - Supply [Max]	Voltage - Supply [Min]	Interface
Azoteq (Pty) Ltd IQS6243200DNR	Capacitive, Hall Effect	85 °C	-20 C	I2C
Azoteq (Pty) Ltd IQS624/5EV04-S					Sensor	Board(s)	Capacitive, Hall Effect, Inductive	IQS624, IQS625	Arduino
Azoteq (Pty) Ltd IQS624EV01-S	Proximity/Touch							IQS624		Board(s)	3.6 V	2 V	I2C
Azoteq (Pty) Ltd IQS624-500-DNR	Capacitive, Hall Effect	85 °C	-20 C	I2C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 53.75

General part information

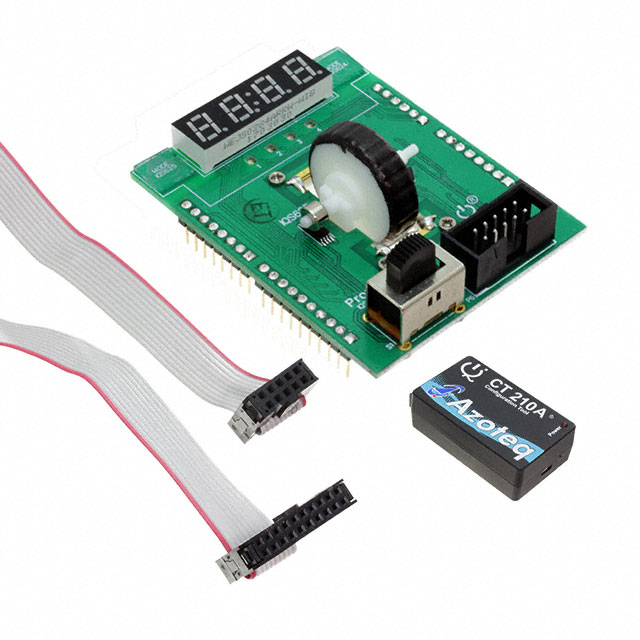

IQS624, IQS625 Capacitive, Hall Effect, Inductive Sensor Arduino Platform Evaluation Expansion Board
