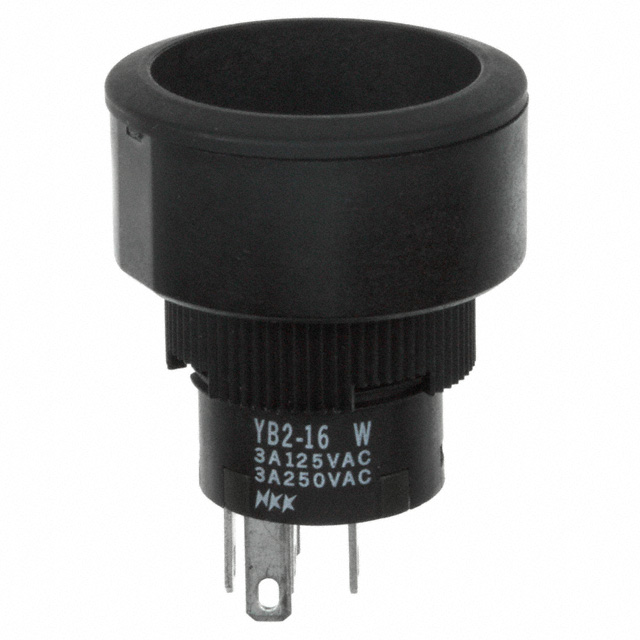

YB216CWCKW01-5D-JB

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB216CWCKW01-5D-JB

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Tactile Feedback
Illumination Type, Color	Amber, LED
Illumination Voltage (Nominal)	2 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB216C Series

Part	Current Rating (Amps)	Actuator Type	Mounting Type	Type	Electrical Life	Features	Switch Function	Circuit	Color - Actuator/Cap	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]	Ingress Protection	Voltage Rating - DC	Illumination Type, Color	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Mechanical Life	Termination Style	Termination Style	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
NKK Switches YB216CWCKG01-5C-CB	0.4 VA	Button Flush Round	Panel Mount Front	Illuminated Standard	100000 Cycles	Tactile Feedback	On-On	SPDT	Red	1.9 VDC	22 mm	IP65 - Dust Tight Water Resistant	28 V	LED Red	No Marking	50 °C	-25 °C	28 V	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB216CWSKW01	3 A	Plunger for Cap	Panel Mount Front	Standard	100000 Cycles	Tactile Feedback	On-On	SPDT				IP65 - Dust Tight Water Resistant	30 V		No Marking	70 °C	-25 °C	125 V	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	21 mm	21 mm
NKK Switches YB216CWSPW01-N-P	3 A		Panel Mount Front	Standard	100000 Cycles	Tactile Feedback	On-On	SPDT	Brushed Chrome			IP65 - Dust Tight Water Resistant	30 V		No Marking	70 °C	-25 °C	125 V	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	21 mm	21 mm
NKK Switches YB216CWSKW01/CUL	3 A	Plunger for Cap	Panel Mount Front	Standard	100000 Cycles	Tactile Feedback	On-On	SPDT				IP65 - Dust Tight Water Resistant	30 V		No Marking	70 °C	-25 °C	125 V	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	21 mm	21 mm
NKK Switches YB216CWCKW01-6B-JB	3 A	Button Flush Round	Panel Mount Front	Illuminated Standard	100000 Cycles	Tactile Feedback	On-On	SPDT	Clear	3.3 VDC	22 mm	IP65 - Dust Tight Water Resistant	30 V	LED White	No Marking	50 °C	-25 °C	125 V	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB216CWCPW01-6G-JS	3 A	Button Flush Round	Panel Mount Front	Illuminated Standard	100000 Cycles	Tactile Feedback	On-On	SPDT	Silver	3.6 VDC	22 mm	IP65 - Dust Tight Water Resistant	30 V	Blue LED	No Marking	50 °C	-25 °C	125 V	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB216CWCKW01/CUL-5C12-CB	3 A	Button Flush Round	Panel Mount Front	Illuminated Standard	100000 Cycles		On-On	DPDT	Red	12 VDC	22 mm	IP65 - Dust Tight Water Resistant	30 V	LED Red		50 °C	-25 °C	125 V	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB216CWCSG01	0.4 VA	Plunger for Cap	Panel Mount Front	Standard	100000 Cycles	Tactile Feedback	On-On	SPDT			22 mm	IP65 - Dust Tight Water Resistant	28 V		No Marking	70 °C	-25 °C	28 V	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB216CWCKW01-N-CB	3 A	Button Flush Round	Panel Mount Front	Standard	100000 Cycles	Tactile Feedback	On-On	SPDT	Red		22 mm	IP65 - Dust Tight Water Resistant	30 V		No Marking	70 °C	-25 °C	125 V	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches YB216CWSKW01-5D24-JB	3 A		Panel Mount Front	Illuminated Standard	100000 Cycles	Tactile Feedback	On-On	SPDT	Clear	24 V		IP65 - Dust Tight Water Resistant	30 V	Amber LED	No Marking	50 °C	-25 °C	125 V	200000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	21 mm	21 mm
