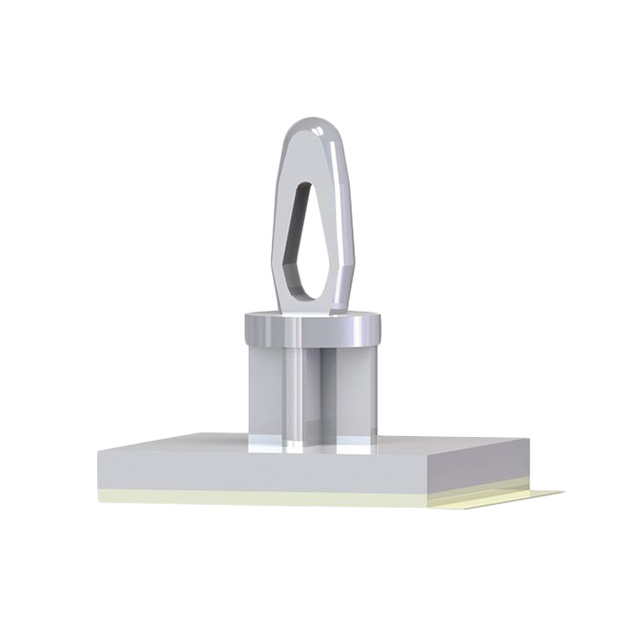

CBSB-4-01A-RT
ActiveEssentra Access Solutions
BRD SPT SNAP FIT ADHESIVE 1/4"
Deep-Dive with AI
Search across all available documentation for this part.
CBSB-4-01A-RT
ActiveEssentra Access Solutions
BRD SPT SNAP FIT ADHESIVE 1/4"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CBSB-4-01A-RT |
|---|---|
| Between Board Height | 6.35 mm |
| Between Board Height | 0.25 in |
| Between Board Height | 0.25 in |
| Holding Type | Snap Fit |
| Length - Overall | 0.654 in |
| Length - Overall | 16.6 mm |
| Material | Nylon |
| Mounting Type | Adhesive |
| Support Hole Diameter [diameter] | 0.15625 in |
| Support Hole Diameter [diameter] | 3.96 mm |
| Support Hole Diameter [diameter] | 0.156 in |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.68 | |
| 5 | $ 0.57 | |||
| 10 | $ 0.51 | |||
| 25 | $ 0.45 | |||
| 50 | $ 0.41 | |||
| 100 | $ 0.40 | |||
Description
General part information
CBSB-4 Series
Board Support Snap Fit / Adhesive Nylon 0.250" (6.35mm) 1/4"
Documents
Technical documentation and resources
No documents available
