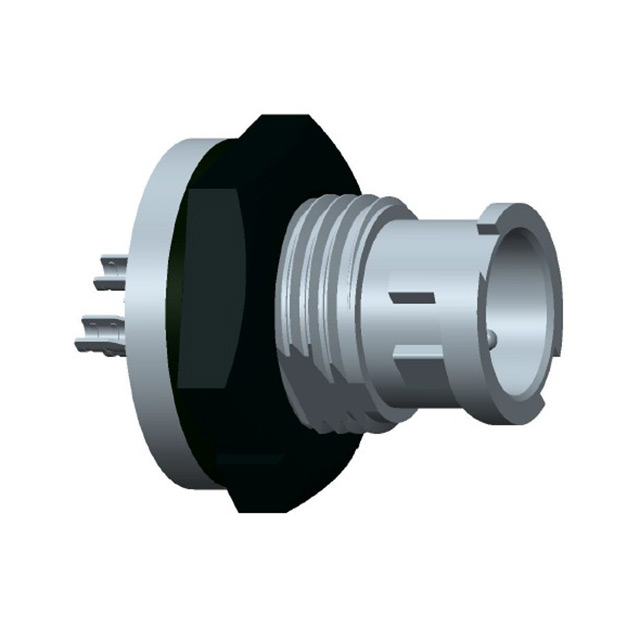

AAD-03PMMS-LC7001
ActiveAmphenol LTW
CONN RCPT MALE 3P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AAD-03PMMS-LC7001
ActiveAmphenol LTW
CONN RCPT MALE 3P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AAD-03PMMS-LC7001 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Mounting Feature | Bulkhead - Front Side Nut |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shell Size - Insert | A |
| Shielding | Unshielded |
| Voltage Rating | 300 VDC |
AAD-03PMMS Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Insert Material | Contact Finish - Mating | Voltage Rating | Ingress Protection | Shell Material | Primary Material | Connector Type | Color | Orientation | Fastening Type | Shielding | Contact Material | Material Flammability Rating | Shell Size - Insert | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol LTW | -40 °C | 105 ░C | Bulkhead - Front Side Nut Flange | Polyamide (PA) Nylon Glass Filled | Gold | 250 VAC | IP67 - Dust Tight Waterproof | Glass Filled Nylon Polyamide (PA) | Plastic | Male Pins Receptacle | Black | Keyed | Bayonet Lock | Unshielded | Copper Alloy | UL94 V-0 | A | 5 A |
Amphenol LTW | -40 °C | 105 ░C | Bulkhead - Front Side Nut | Nylon Polyamide (PA) | Gold | 300 VDC | IP67 - Dust Tight Waterproof | Glass Filled Nylon Polyamide (PA) | Plastic | Male Pins Receptacle | Black | Keyed | Bayonet Lock | Unshielded | Copper Alloy | A | 5 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.21 | |
| 10 | $ 2.92 | |||
| 25 | $ 2.76 | |||
| 50 | $ 2.70 | |||
| 100 | $ 2.57 | |||
| 250 | $ 2.26 | |||
Description
General part information
AAD-03PMMS Series
3 Position Circular Connector Receptacle, Male Pins Solder Cup
