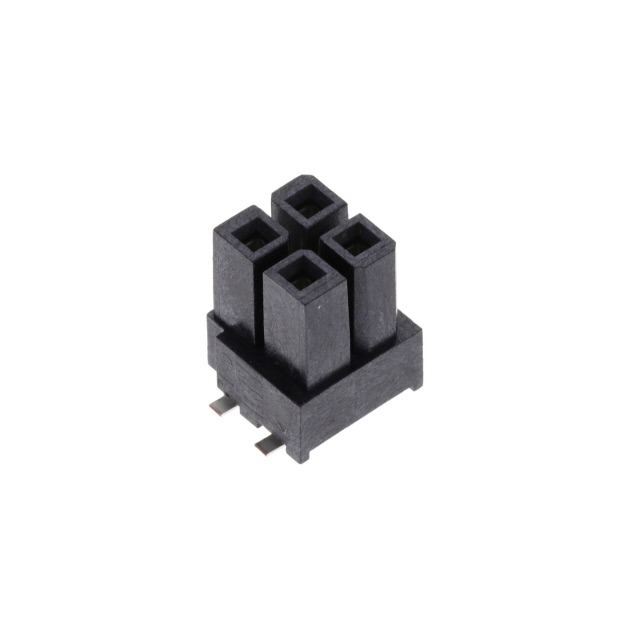

IPBS-102-02-T-D

Active

Samtec Inc.

.165" POWER MATE ISOLATED POWER

Search across all available documentation for this part.

Active

Samtec Inc.

.165" POWER MATE ISOLATED POWER

Technical Specifications

Parameters and characteristics for this part

Part	Insulation Material	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Mounting Type	Number of Positions	Voltage Rating	Connector Type	Fastening Type	Insulation Color	Contact Type	Number of Positions Loaded	Contact Shape	Insulation Height	Insulation Height	Termination	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Features
Samtec Inc. IPBS-102-02-T-S	Liquid Crystal Polymer (LCP)	Phosphor Bronze	105 ░C	-55 °C	1	Surface Mount	2	400 VAC 565 VDC	Header	Push-Pull	Black	Female Socket	All	Square	12.2 mm	0.48 in	Solder	Tin	4.2 mm	0.165 in
Samtec Inc. IPBS-102-02-T-D-GP	Liquid Crystal Polymer (LCP)	Phosphor Bronze	105 ░C	-55 °C	2	Surface Mount	4	400 VAC 565 VDC	Header	Push-Pull	Black	Female Socket	All	Square	12.2 mm	0.48 in	Solder	Tin	4.2 mm	0.165 in	4.2 mm	0.165 in	Guide Pin
Samtec Inc. IPBS-102-02-T-D	Liquid Crystal Polymer (LCP)	Phosphor Bronze	105 ░C	-55 °C	2	Surface Mount	4	400 VAC 565 VDC	Header	Push-Pull	Black	Female Socket	All	Square	12.2 mm	0.48 in	Solder	Tin	4.2 mm	0.165 in	4.2 mm	0.165 in
