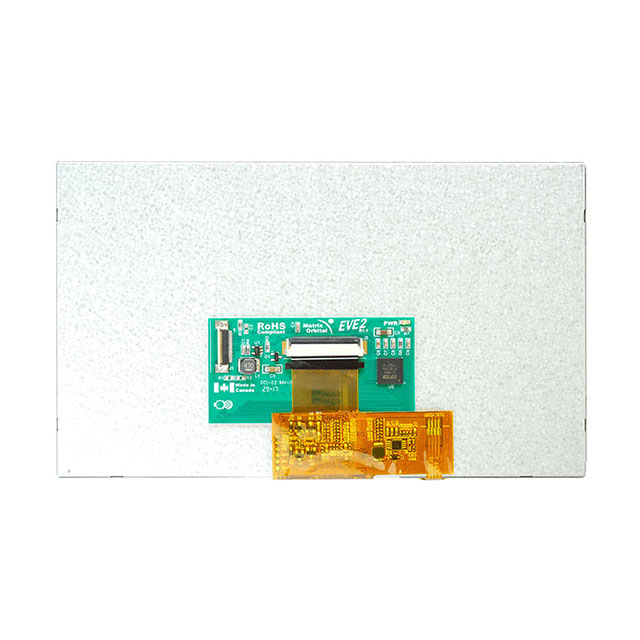

EVE2-70A-BLM-TPN

Active

Matrix Orbital

DISPLAY LCD TFT 7" EVE

Search across all available documentation for this part.

Active

Matrix Orbital

DISPLAY LCD TFT 7" EVE

Technical Specifications

Parameters and characteristics commom to parts in this series

LCD DISPLAY TFT 7" 800X480

Part	Graphics Color	Dot Pixels [y]	Dot Pixels [x]	Diagonal Screen Size	Diagonal Screen Size	Interface	Display Mode	Background Color	Touchscreen	Display Type	Viewing Area [x]	Viewing Area [y]	Dot Pixels	Backlight
Matrix Orbital EVE2-70A-BLM-TPR	Blue, Green, Red	480	800	177.8 mm	7 in	SPI	Transmissive	Black	Resistive	TFT - Color	155.08 mm	86.92 mm
Matrix Orbital EVE2-70G-BLM-TPC	Blue, Green, Red	480	800	177.8 mm	7 in	SPI	Transmissive		Capacitive	TFT - Color	153.84 mm	85.63 mm	WVGA	LED
Matrix Orbital EVE2-70A-BLM-TPN	Blue, Green, Red	480	800	177.8 mm	7 in	SPI	Transmissive	Black		TFT - Color	154.84 mm	86.63 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 84.06

General part information

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color SPI 7" (177.80mm) 800 x 480

Technical documentation and resources
