AS1349-BTDT-3312

Obsolete

ams-OSRAM USA INC.

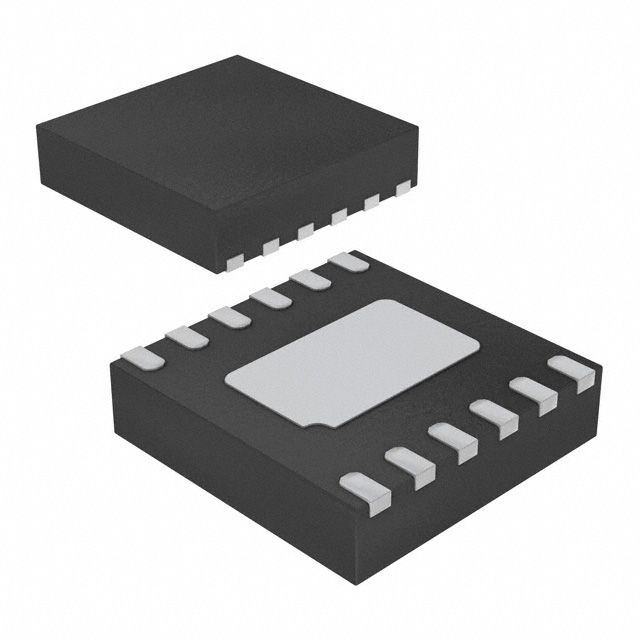

IC REG BUCK 1.2V/3.3V DL 12TDFN

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

IC REG BUCK 1.2V/3.3V DL 12TDFN

Technical Specifications

Parameters and characteristics for this part

IC REG BUCK 1.2V/3.3V DL 12TDFN

Part	Voltage - Output (Min/Fixed)	Frequency - Switching	Synchronous Rectifier	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Current - Output	Voltage - Input (Max) [Max]	Output Configuration	Function	Mounting Type	Output Type	Topology	Number of Outputs	Package / Case
ams-OSRAM USA INC. AS1349-BTDT-3312	1.2 V, 3.3 V	2 MHz		2.7 V	85 °C	-40 °C	12-TDFN (3x3)	1.2 A	5.5 V	Positive	Step-Down	Surface Mount	1.81 mOhm	Buck	2	12-WFDFN Exposed Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Buck Switching Regulator IC Positive Fixed 1.2V, 3.3V 2 Output 1.2A 12-WFDFN Exposed Pad
