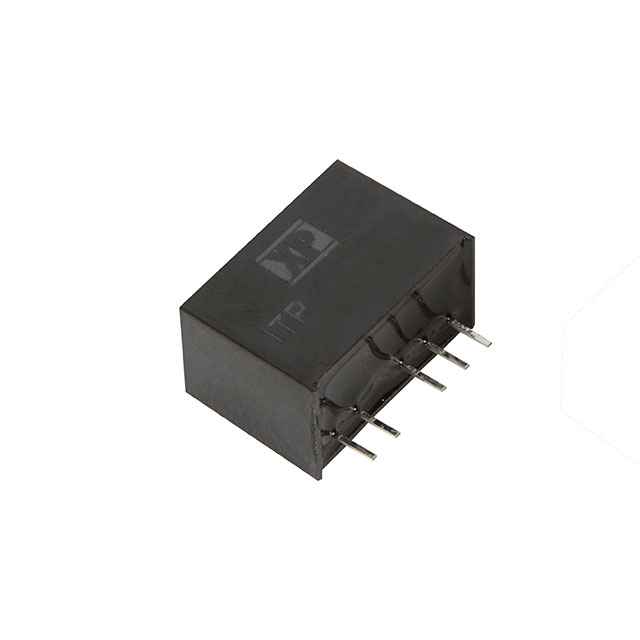

ITP0312D15
ActiveXP POWER
DC DC CONVERTER +/-15V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ITP0312D15
ActiveXP POWER
DC DC CONVERTER +/-15V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ITP0312D15 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 100 mA |
| Current - Output (Max) | 100 mA |
| Efficiency | 83 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 75 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-SIP Module, 5 Leads |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 17 mm |
| Size / Dimension [x] | 0.67 in |
| Size / Dimension [y] | 9.5 mm |
| Size / Dimension [y] | 0.38 in |
| Size / Dimension [z] | 12.2 mm |
| Size / Dimension [z] | 0.48 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 15 | $ 14.34 | |
Description
General part information
ITP0312 Series
Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 4.5V - 18V Input
