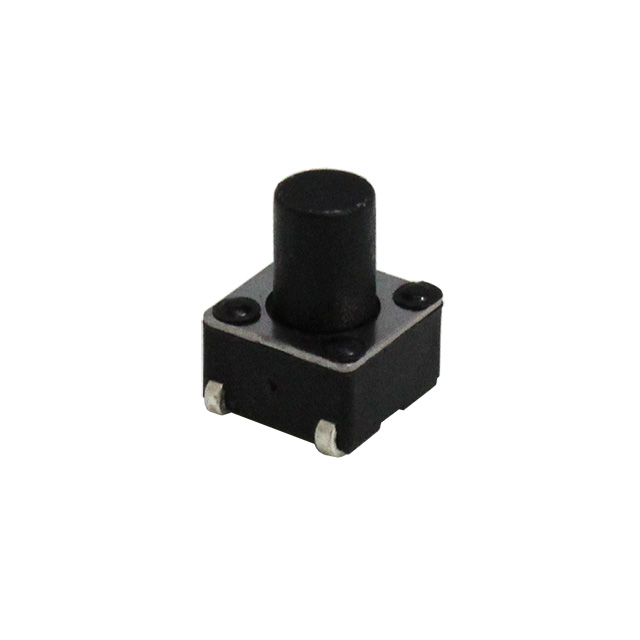

CS11028.0F100J

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CS11028.0F100J

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CS11028.0F100J

Actuator Height off PCB, Vertical [z]	8 mm
Actuator Material	Polyamide (PA46), Nylon 4/6
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Force	100 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	J Lead

CS11028 Series

Part	Actuator Material	Outline [y]	Outline [x]	Switch Function	Circuit	Illumination	Mounting Type	Termination Style	Contact Rating @ Voltage	Actuator Type	Switch Travel	Actuator Height off PCB, Vertical [z]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Orientation	Operating Force	Actuator Height off PCB, Vertical
CIT Relay and Switch CS11028.0F260	Nylon 4/6 Polyamide (PA46)	6 mm	6 mm	Off-Mom	SPST-NO	Non-Illuminated	Surface Mount	Gull Wing	0.05 A 50 VDC	Plunger for Cap	0.25 mm	8 mm	85 °C	-40 °C	Top Actuated	260 gf
CIT Relay and Switch CS11028.5F100J	Nylon 4/6 Polyamide (PA46)	6 mm	6 mm	Off-Mom	SPST-NO	Non-Illuminated	Surface Mount	J Lead	0.05 A 50 VDC	Plunger for Cap	0.25 mm		85 °C	-40 °C	Top Actuated	100 gf	8.5 mm
CIT Relay and Switch CS11028.5F100	Nylon 4/6 Polyamide (PA46)	6 mm	6 mm	Off-Mom	SPST-NO	Non-Illuminated	Surface Mount	Gull Wing	0.05 A 50 VDC	Plunger for Cap	0.25 mm		85 °C	-40 °C	Top Actuated	100 gf	8.5 mm
CIT Relay and Switch CS11028.0F260J	Nylon 4/6 Polyamide (PA46)	6 mm	6 mm	Off-Mom	SPST-NO	Non-Illuminated	Surface Mount	J Lead	0.05 A 50 VDC	Plunger for Cap	0.25 mm	8 mm	85 °C	-40 °C	Top Actuated	260 gf
CIT Relay and Switch CS11028.5F260J	Nylon 4/6 Polyamide (PA46)	6 mm	6 mm	Off-Mom	SPST-NO	Non-Illuminated	Surface Mount	J Lead	0.05 A 50 VDC	Plunger for Cap	0.25 mm		85 °C	-40 °C	Top Actuated	260 gf	8.5 mm
CIT Relay and Switch CS11028.5F260	Nylon 4/6 Polyamide (PA46)	6 mm	6 mm	Off-Mom	SPST-NO	Non-Illuminated	Surface Mount	Gull Wing	0.05 A 50 VDC	Plunger for Cap	0.25 mm		85 °C	-40 °C	Top Actuated	260 gf	8.5 mm
CIT Relay and Switch CS11028.0F100J	Nylon 4/6 Polyamide (PA46)	6 mm	6 mm	Off-Mom	SPST-NO	Non-Illuminated	Surface Mount	J Lead	0.05 A 50 VDC	Plunger for Cap	0.25 mm	8 mm	85 °C	-40 °C	Top Actuated	100 gf
CIT Relay and Switch CS11028.5F160J	Nylon 4/6 Polyamide (PA46)	6 mm	6 mm	Off-Mom	SPST-NO	Non-Illuminated	Surface Mount	J Lead	0.05 A 50 VDC	Plunger for Cap	0.25 mm		85 °C	-40 °C	Top Actuated		8.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.43
		10	$ 0.41
		25	$ 0.39
		100	$ 0.34
		250	$ 0.31
	Digi-Reel®	1	$ 0.43
		10	$ 0.41
		25	$ 0.39
		100	$ 0.34
		250	$ 0.31
	Tape & Reel (TR)	500	$ 0.20
		1000	$ 0.18
		2500	$ 0.18

Description

General part information

CS11028 Series

Tactile Switch SPST-NO Top Actuated Surface Mount
