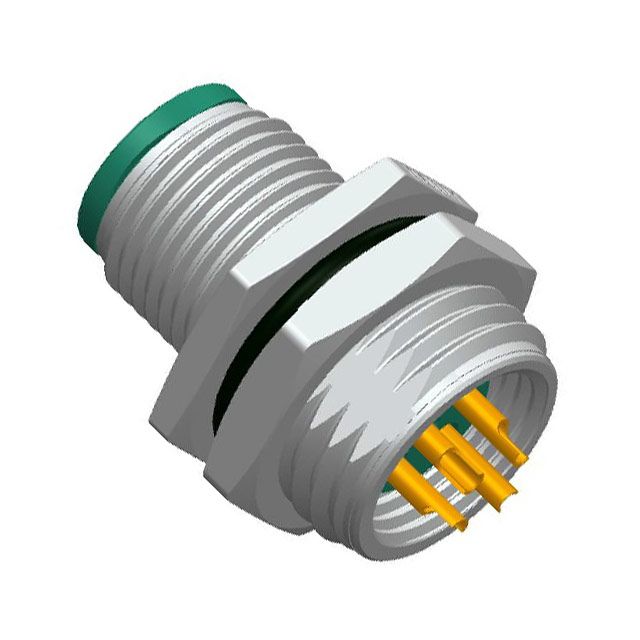

M12A-04PMMS-SH8001
ActiveAmphenol LTW
CONN PLUG MALE 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M12A-04PMMS-SH8001 |
|---|---|
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Ingress Protection | IP68, IP69K |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M12-4 |
| Shielding | Shielded |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.25 | |
| 10 | $ 6.16 | |||
| 25 | $ 5.77 | |||
| 50 | $ 5.50 | |||
| 100 | $ 5.24 | |||
| 250 | $ 4.91 | |||
| 500 | $ 4.67 | |||
| 1000 | $ 4.45 | |||
Description
General part information
M12A-04PMMS Series
4 Position Circular Connector Plug, Male Pins Solder Cup
