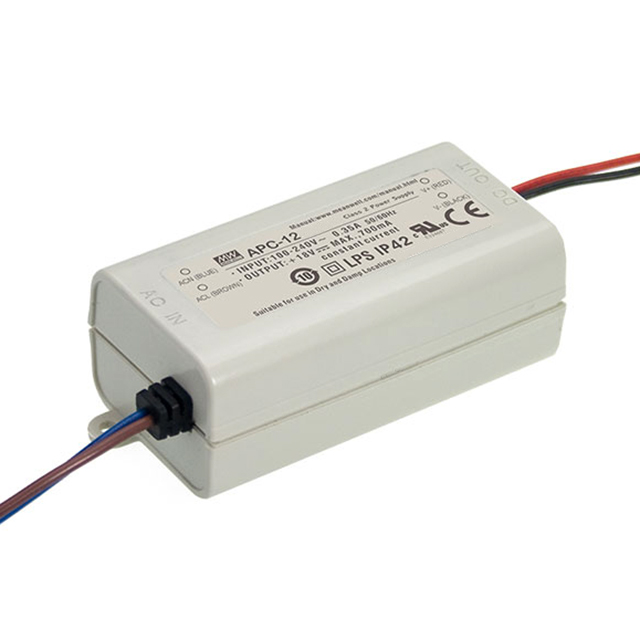

APC-12-700

Active

MEAN WELL USA Inc.

LED DRIVER CC AC/DC 9-18V 700MA

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

LED DRIVER CC AC/DC 9-18V 700MA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

700mA 9 ~ 18V Constant Current LED Driver AC DC Converter Topology 1 Output

Technical documentation and resources

Parameters and characteristics commom to parts in this series

LED DRIVER CC AC/DC 9-18V 700MA

Part	Mounting Type	Features	Voltage - Input (Min) [Min]	Type	Voltage - Input (Max) [Max]	Approval Agency	Power (Watts)	Termination Style	Topology	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Current - Output (Max) [Max]	Efficiency	Number of Outputs	Voltage - Isolation	Voltage - Output [Max]	Voltage - Output [Min]
MEAN WELL USA Inc. APC-12E-700	Chassis Mount	OVP, SCP	180 VAC	Constant Current	264 VAC	CE, ENEC	13 W	Wire Leads	AC DC Converter	IP42	70 °C	-30 ░C	29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	700 mA	79 %	1	3750 V
MEAN WELL USA Inc. APC-12-700	Chassis Mount	OVP, SCP	90 VAC	Constant Current	264 VAC	CCC, CE, cURus	13 W	Wire Leads	AC DC Converter	IP42	70 °C	-30 ░C	29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	700 mA	80 %	1	3750 V
MEAN WELL USA Inc. APC-12E-350	Chassis Mount	OVP, SCP	180 VAC	Constant Current	264 VAC	CE, ENEC	13 W	Wire Leads	AC DC Converter	IP42	70 °C	-30 ░C	29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	350 mA	81 %	1	3750 V	36 V	9 V
MEAN WELL USA Inc. APC-12-350	Chassis Mount	OVP, SCP	90 VAC	Constant Current	264 VAC	CCC, CE, cURus	13 W	Wire Leads	AC DC Converter	IP42	70 °C	-30 ░C	29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	350 mA		1	3750 V	36 V	9 V
