01-271.025
ActiveEAO

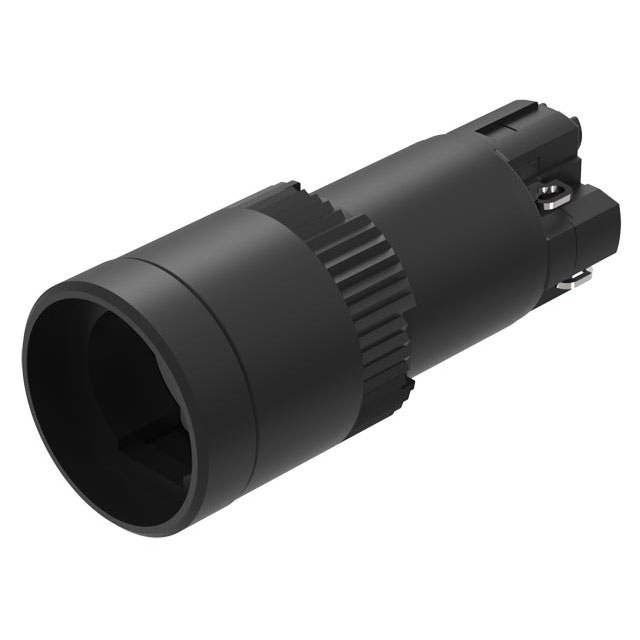

SWITCH PB DPST-NO/NC 5A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
01-271.025
ActiveEAO
SWITCH PB DPST-NO/NC 5A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 01-271.025 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button (Not Included) |
| Circuit | DPST-NO/NC |
| Current Rating (Amps) | 5 A |
| Ingress Protection | IP40 |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | On-Off, Off-On |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 48.26 | |
| 10 | $ 41.62 | |||
| 25 | $ 39.24 | |||
| 50 | $ 37.52 | |||
| 100 | $ 35.87 | |||
| 250 | $ 33.81 | |||
01-271 Series
SWITCH PB DPST-NO/NC 5A 250V
| Part | Type | Current Rating (Amps) | Actuator Marking | Voltage Rating - AC | Switch Function | Mechanical Life | Termination Style | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Panel Cutout Dimensions [diameter] | Mounting Type | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 01-271.025 | Standard | 5 A | No Marking | 250 V | Off-On, On-Off | 1000000 Cycles | Solder Lug | Round, Button (Not Included) | 55 °C | -25 °C | DPST-NO/NC | 16 mm | Panel Mount, Front | IP40 |
Description
General part information
01-271 Series
Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
