25174 BK199

Active

ALPHA WIRE

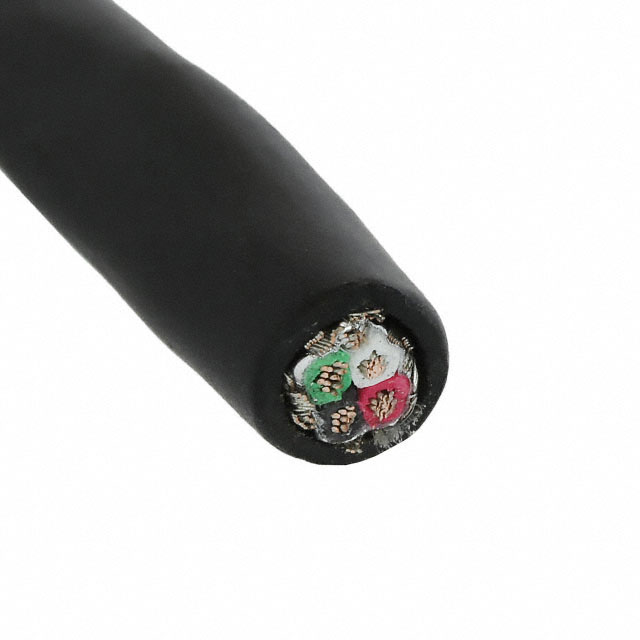

CABLE 4COND 16AWG BLK SHLD 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 16AWG BLK SHLD 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	25174 BK199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Features	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter [diameter]	8.03 mm
Jacket (Insulation) Diameter [diameter]	0.316 "
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Shield Coverage	70 %, 100 %
Shield Material	Copper, Tinned, Suprashield®
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	16 AWG

CABLE 4COND 16AWG BLK SHLD 1000'

Part	Conductor Insulation	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Cable Type	Jacket (Insulation) Material	Shield Material	Wire Gauge	Jacket Color	Ratings	Voltage	Shield Coverage	Features
ALPHA WIRE 25174 BK199	Poly-Vinyl Chloride (PVC)	Copper, Tinned	-30 ░C	90 °C	1000 ft	304.8 m	4	8.03 mm	0.316 "	19	0.0117 in	Braid, Foil	Multi-Conductor	Polyurethane (PU)	Copper, Tinned, Suprashield®	16 AWG	Black	ISO 10993, UL Style 20668	300 V	70 %, 100 %	Biological Compatibility, Drain Wire, Rip Cord

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 9.30

General part information

4 Conductor Multi-Conductor Cable Black 16 AWG Foil, Braid 1000.0' (304.8m)
