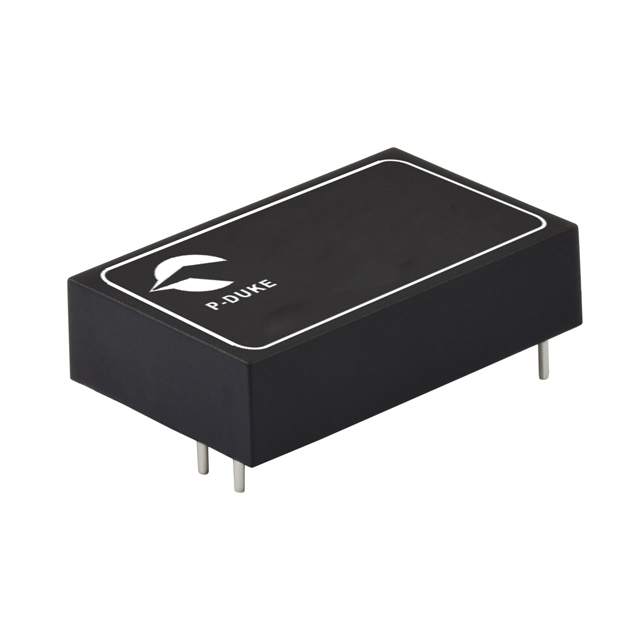

MPM15-24S24

Active

P-DUKE Technology

DC DC CONVERTER 24V 15W

Search across all available documentation for this part.

Active

P-DUKE Technology

DC DC CONVERTER 24V 15W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 24V 15W

Part	Power (Watts)	Voltage - Isolation	Applications	Approval Agency	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Number of Outputs	Voltage - Input (Min) [Min]	Type	Package / Case	Package / Case	Efficiency	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Features
P-DUKE Technology MPM15-24S24	15 W	5000 V	ITE (Commercial), Medical	CB, CE, cURus, FCC	625 mA	-40 °C	105 C	24 V	1	18 V	Isolated Module	5 Leads	6-DIP Module	90 %	36 V	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	Through Hole	Adjustable Output
P-DUKE Technology MPM15-24S12	15 W	5000 V	ITE (Commercial), Medical	CB, CE, cURus, FCC	1.25 A	-40 °C	105 C	12 V	1	18 V	Isolated Module	5 Leads	6-DIP Module	90 %	36 V	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	Through Hole	Adjustable Output
P-DUKE Technology MPM15-24S24W	15 W	5000 V	ITE (Commercial), Medical	CB, CE, cURus, FCC	625 mA	-40 °C	105 C	24 V	1	9 V	Isolated Module	5 Leads	6-DIP Module	88 %	36 V	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	Through Hole	Adjustable Output

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 24V 625mA 18V - 36V Input
