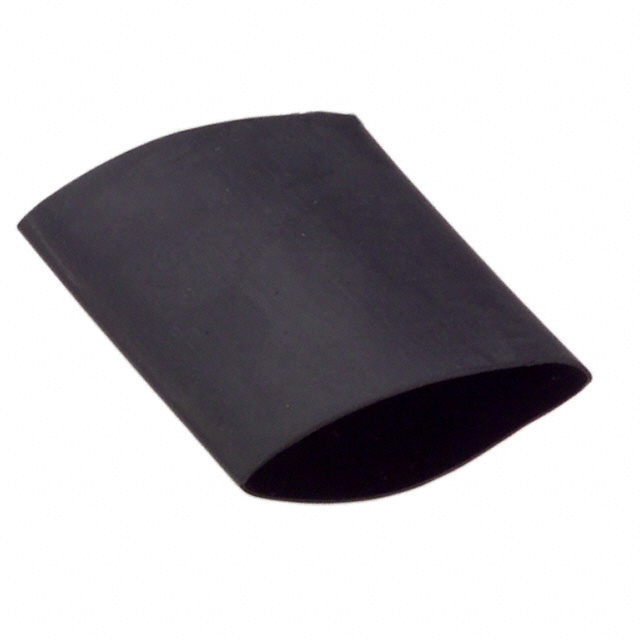

CP-221 1" BL100'

Obsolete

3M (TC)

HEATSHRINK CP221 1" X 5' BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CP-221 1" BL100'

Obsolete

3M (TC)

HEATSHRINK CP221 1" X 5' BLK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CP-221 1" BL100'

Color	Black
Features	Self Extinguishing
Inner Diameter - Recovered [diameter]	0.5 in
Inner Diameter - Recovered [diameter]	12.7 mm
Inner Diameter - Supplied [diameter]	1 in
Inner Diameter - Supplied [diameter]	25.4 mm
Length	1.52 m, 15.2 m
Length	5 ', 50 ft
Length [x]	30.5 m
Length [x]	100 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.89 mm
Recovered Wall Thickness	0.035 in
Shrink Temperature	121 °C
Shrinkage Ratio	2 to 1
Type	Tubing, Flexible

CP-221 Series

Part	Color	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Length	Shrinkage Ratio	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Shrink Temperature	Material	Features	Inner Diameter - Recovered	Recovered Wall Thickness	Recovered Wall Thickness	Length [x]	Length [x]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]
3M (TC) CP-221 1/4" BL200'	Black	0.125 in	3.18 mm	0.25 in	6.35 mm	Tubing Flexible	135 °C	-55 °C	1.52 m 25.4 mm 38.1 mm	0.083 ft 0.125 ' 5 '	1 in 1.5 "	2 to 1	0.025 "	0.64 mm	121 °C	Polyolefin (PO)	Self Extinguishing
3M (TC) CP-221 3/16" BL250'	Black		2.36 mm	0.187 in	4.75 mm	Tubing Flexible	135 °C	-55 °C	1.52 m 7.6 m 15.2 m 76.2 m	5 ' 25 ft 50 ft 3000 "		2 to 1			121 °C	Polyolefin (PO)	Self Extinguishing	0.093 in	0.02 in	0.51 mm	30.5 m	100 ft
3M (TC) CP-221 3/32" BL500'	Black	0.046 in			0.093 in	Tubing Flexible	135 °C	-55 °C	1.52 m 7.6 m 76.2 m	5 ' 25 ft 3000 "		2 to 1			121 °C	Polyolefin (PO)	Self Extinguishing		0.02 in	0.51 mm	30.5 m 152.4 m	100 ft 500 '	1.17 mm	2.36 mm
3M (TC) CP-221 1/8" BL500'	Black	0.062 in		0.125 "	3.18 mm	Tubing Flexible	135 °C	-55 °C	1.52 m	5 '		2 to 1			121 °C	Polyolefin (PO)	Self Extinguishing		0.02 in	0.51 mm	30.5 m	100 ft	1.57 mm
3M (TC) CP-221 1/16" BL1000'	Black	0.031 in		0.063 in	1.6 mm	Tubing Flexible	135 °C	-55 °C	7.6 m 304.8 m	25 ft 1000 ft		2 to 1			121 °C	Polyolefin (PO)	Self Extinguishing		0.017 in	0.43 mm	30.5 m	100 ft	0.79 mm
3M (TC) CP-221 3/4" BL200'	Black	0.375 in		0.752 in	19.1 mm	Tubing Flexible	135 °C	-55 °C	7.6 m	25 ft		2 to 1			121 °C	Polyolefin (PO)	Self Extinguishing			0.76 mm	61 m	200 ft	9.53 mm		0.03 "
3M (TC) CP-221 3/8" BL200'	Black	0.187 in		0.375 in	9.53 mm	Tubing Flexible	135 °C	-55 °C	1.52 m	5 '		2 to 1	0.025 "	0.64 mm	121 °C	Polyolefin (PO)	Self Extinguishing						4.75 mm
3M (TC) CP-221 3/64" BL1000'	Black			0.046 in	1.17 mm	Tubing Flexible	135 °C	-55 °C	1.52 m 7.6 m 304.8 m	5 ' 25 ft 1000 ft		2 to 1			121 °C	Polyolefin (PO)	Self Extinguishing		0.016 "	0.41 mm	30.5 m	100 ft	0.023 in			0.58 mm
3M (TC) CP-221 1" BL100'	Black	0.5 in		1 in	25.4 mm	Tubing Flexible	135 °C	-55 °C	1.52 m 15.2 m	5 ' 50 ft		2 to 1			121 °C	Polyolefin (PO)	Self Extinguishing		0.035 in	0.89 mm	30.5 m	100 ft	12.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CP-221 Series

Heat Shrink Tubing, Flexible 1.000" (25.40mm) 2 to 1 Black 5.00' (1.52m)
