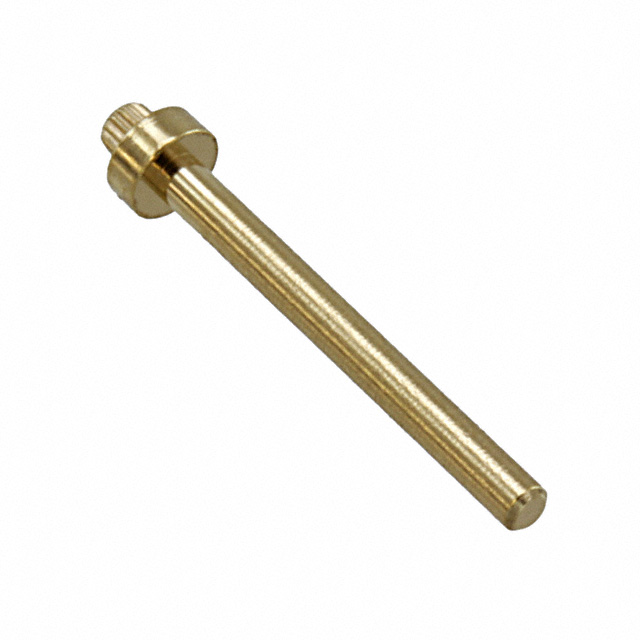

4526-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.040DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
4526-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.040DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4526-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.082 in |
| Flange Diameter [diameter] | 2.08 mm |
| Insulation | Non-Insulated |
| Length - Below Flange [x] | 0.035 in |
| Length - Below Flange [x] | 0.89 mm |
| Length - Overall [x] | 0.479 in |
| Length - Overall [x] | 12.17 mm |
| Mounting Hole Diameter [diameter] | 0.04 in |
| Mounting Hole Diameter [diameter] | 1.02 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.02 mm |
| Pin Size - Above Flange [diameter] | 0.04 in |
| Pin Size - Below Flange [diameter] | 1.09 mm |
| Pin Size - Below Flange [diameter] | 0.043 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Knurled, Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.44 | |
| 10 | $ 0.34 | |||
| 25 | $ 0.30 | |||
| 50 | $ 0.28 | |||
| 100 | $ 0.26 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| 2500 | $ 0.18 | |||
Description
General part information
4526-0 Series
PC Pin Terminal Connector Through Hole Gold 0.040" (1.02mm) Dia
