Connectors, Interconnects

345-066-555-578

Active

EDAC Inc.

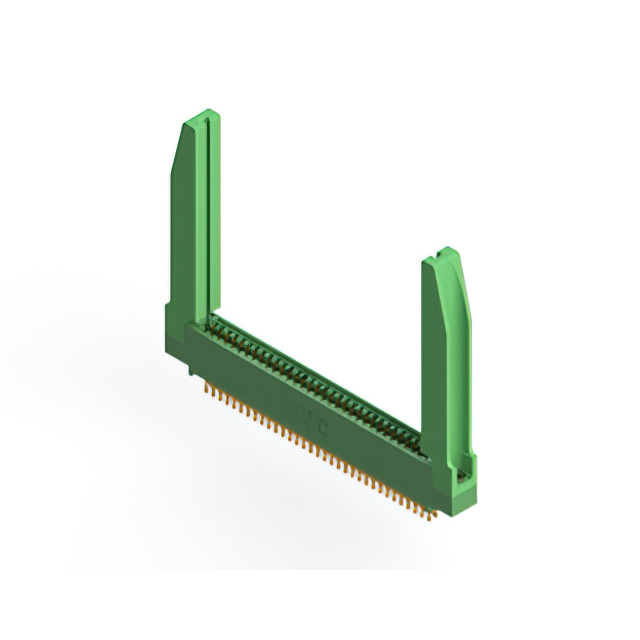

CONN EDGE DUAL FMALE 66POS 0.100

Connectors, Interconnects

345-066-555-578

Active

EDAC Inc.

CONN EDGE DUAL FMALE 66POS 0.100

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	345-066-555-578

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender, Card Guides
Flange Feature	4-40, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Straddle Mount, Board Edge
Number of Positions	33, 66
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2 rows

345-066 Series

...

Part	Read Out	Gender	Pitch	Contact Material	Color	Termination	Card Type	Card Thickness (Min)	Card Thickness (Max)	Contact Finish Thickness	Number of Rows	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Contact Type	Mounting Type	Flange Feature	Contact Finish	Material - Insulation	Termination Rows	Features	Flange Feature Diameter
EDAC Inc. 345-066-520-208	Dual	Female	0.1 in	Copper Alloy	Green	Solder	Dual Edge Non Specified	0.054 in	0.07 in	10 Ąin	2	33 66	-40 °C	105 °C	Cantilever	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Gold	Polyester Thermoplastic	2 rows
EDAC Inc. 345-066-544-258	Dual	Female	0.1 in	Copper Alloy	Green	Wire Wrap	Dual Edge Non Specified	0.054 in	0.07 in	10 Ąin	2	33 66	-40 °C	105 °C	Cantilever	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Gold	Polyester Thermoplastic	2 rows	Card Guides
EDAC Inc. 345-066-540-103	Single	Female	0.1 in	Copper Alloy	Green	Wire Wrap	Non Specified Single Edge	0.054 in	0.07 in	10 Ąin	1	66	-40 °C	105 °C	Cantilever	Through Hole	Floating Bobbin Flush Mount	Gold	Polyester Thermoplastic	1 rows		0.116 in
EDAC Inc. 345-066-521-202	Dual	Female	0.1 in	Copper Alloy	Green	Solder	Dual Edge Non Specified	0.054 in	0.07 in	10 Ąin	2	33 66	-40 °C	105 °C	Cantilever	Through Hole	Flush Mount Top Opening Unthreaded	Gold	Polyester Thermoplastic	2 rows		0.128 in
EDAC Inc. 345-066-525-101	Single	Female	0.1 in	Copper Alloy	Green	Solder	Non Specified Single Edge	0.054 in	0.07 in	10 Ąin	1	66	-40 °C	105 °C	Cantilever	Through Hole		Gold	Polyester Thermoplastic	1 rows
EDAC Inc. 345-066-523-604	Single	Female	0.1 in	Copper Alloy	Green	Solder	Non Specified Single Edge	0.054 in	0.07 in	10 Ąin	1	66	-40 °C	105 °C	Cantilever	Through Hole	Top Mount Opening Unthreaded	Gold	Polyester Thermoplastic	1 rows		0.156 in
EDAC Inc. 345-066-542-558	Dual	Female	0.1 in	Copper Alloy	Green	Wire Wrap	Dual Edge Non Specified	0.054 in	0.07 in	10 Ąin	2	33 66	-40 °C	105 °C	Cantilever	Through Hole	4-40 Threaded Insert Top Mount Opening	Gold	Polyester Thermoplastic	2 rows	Card Guides
EDAC Inc. 345-066-555-578	Dual	Female	0.1 in	Copper Alloy	Green	Solder Eyelet(s)	Dual Edge Non Specified	0.054 in	0.07 in	10 Ąin	2	33 66	-40 °C	105 °C	Cantilever	Board Edge Straddle Mount	4-40 Threaded Insert Top Mount Opening	Gold	Polyester Thermoplastic	2 rows	Card Extender Card Guides
EDAC Inc. 345-066-500-408	Single	Female	0.1 in	Copper Alloy	Green	Solder Eyelet(s)	Non Specified Single Edge	0.054 in	0.07 in	10 Ąin	1	66	-40 °C	105 °C	Cantilever	Through Hole	4-40 Threaded Insert Top Mount Opening	Gold	Polyester Thermoplastic	1 rows
EDAC Inc. 345-066-559-402	Single	Female	0.1 in	Copper Alloy	Green	Solder	Non Specified Single Edge	0.054 in	0.07 in	10 Ąin	1	66	-40 °C	105 °C	Cantilever	Right Angle Through Hole	Top Mount Opening Unthreaded	Gold	Polyester Thermoplastic	1 rows		0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	Box	25	$ 15.71	<5d

CAD

3D models and CAD resources for this part

Description

General part information

345-066 Series

66 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green

Documents

Technical documentation and resources

345-066-555-578 | Datasheet
