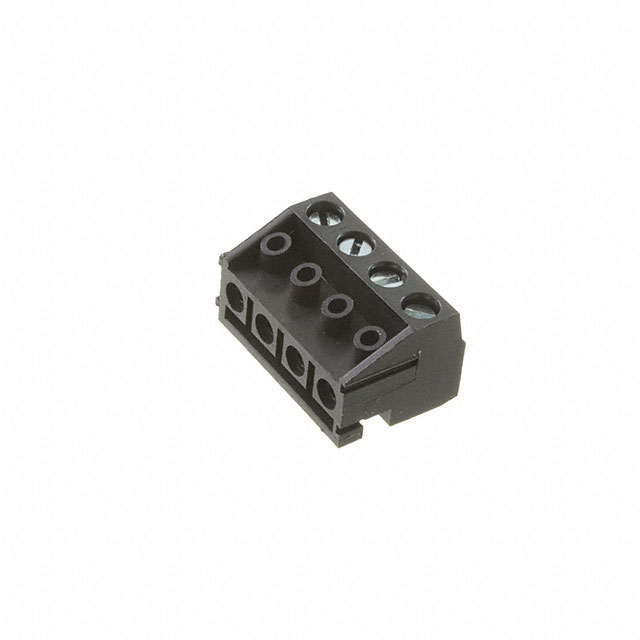

EBJA-04-C-BK

Active

Adam Tech

TERM BLOCK PLUG 4POS 5MM

Search across all available documentation for this part.

Active

Adam Tech

TERM BLOCK PLUG 4POS 5MM

Technical Specifications

Parameters and characteristics for this part

Specification	EBJA-04-C-BK

Color	Black
Contact Material	Phosphor Bronze
Contact Mating Finish	Nickel
Current - UL	10 A
Features	Interlocking (Side)
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Height	0.433 in
Insulation Height	11 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	4
Screw Size	M2.5
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.4 Nm
Torque - Screw	3.5 Lb-In
Type	Plug for Unshrouded Header
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	16 AWG
Wire Strip Length [Max]	5 mm
Wire Strip Length [Min]	4.5 mm

Part	Contact Mating Finish	Screw Size	Pitch [x]	Pitch [x]	Color	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Material	Features	Current - UL	Material Flammability Rating	Mounting Type	Voltage - UL	Wire Strip Length [Max]	Wire Strip Length [Min]	Termination Style	Torque - Screw	Torque - Screw	Housing Material	Insulation Height	Insulation Height	Type	Positions Per Level	Number of Positions
Adam Tech EBJA-04-C-BK	Nickel	M2.5	5 mm	0.197 in	Black	1	-40 °C	105 ░C	28 AWG	16 AWG	Phosphor Bronze	Interlocking (Side)	10 A	UL94 V-0	Free Hanging (In-Line)	300 V	5 mm	4.5 mm	Screw - Rising Cage Clamp	0.4 Nm	3.5 Lb-In	Polybutylene Terephthalate (PBT)	0.433 in	11 mm	Plug for Unshrouded Header	4	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 180° Free Hanging (In-Line)
