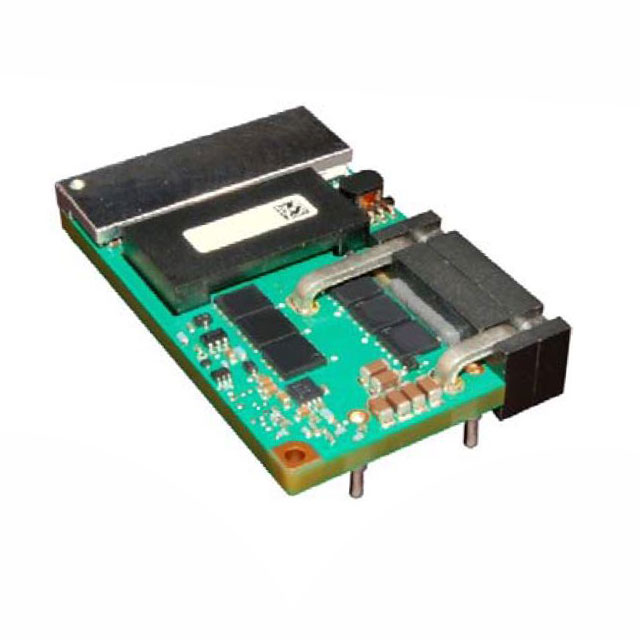

QBVE060A0S10R441-PZ
ActiveOmniOn Power™
DC DC CONVERTER 10.4V 625W
QBVE060A0S10R441-PZ
ActiveOmniOn Power™
DC DC CONVERTER 10.4V 625W
Description
General part information
QBVE060 Series
Intermediate Bus Converter DC DC Converter 1 Output 10.4V 60A 45V - 56V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | QBVE060A0S10R441-PZ |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Enable, Active Low |
| Current - Output (Max) | 60 A |
| Efficiency | 97 % |
| Features | UVLO, OCP, Remote On/Off, OVP, OTP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -5 °C |
| Package / Case | 8-DIP Module, 1/4 Brick |
| Power (Watts) | 625 W |
| Size / Dimension Height | 0.43 in |
| Size / Dimension Length | 2.3 in |
| Size / Dimension Width | 1.45 in |
| Type | Intermediate Bus Converter |
| Voltage - Input (Max) | 56 V |
| Voltage - Input (Min) | 45 V |
| Voltage - Isolation | 750 V |
| Voltage - Output 1 | 10.4 V |
