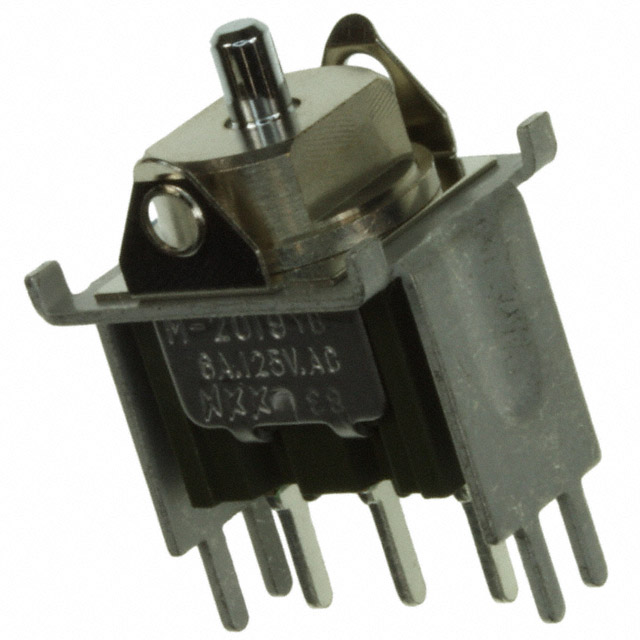

M2019TZW13

Obsolete

NKK Switches

SWITCH ROCKER SPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROCKER SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Type	Switch Function	Circuit	Termination Style	Color - Actuator/Cap	Actuator Marking	Mounting Type	Approval Agency	Voltage Rating - AC	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Features	Electrical Life	Current Rating (Amps)
NKK Switches M2019TZG13-JA	Concave (Standard V)	On-Off-Mom	SPDT	PC Pin	Black	No Marking	Through Hole	CSA UL	28 V	28 V	-30 ░C	85 °C	Epoxy Sealed Terminals	50000 Cycles	0.4 VA
NKK Switches M2019TZW13	Actuator Arm Cap Required	On-Off-Mom	SPDT	PC Pin		Varies by Cap	Through Hole	CSA UL	125 V	30 V	-30 ░C	85 °C	Epoxy Sealed Terminals	25000 Steps	3 A 6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.15

General part information

Rocker Switch SPDT 6A (AC), 3A (DC) 125 V Through Hole
