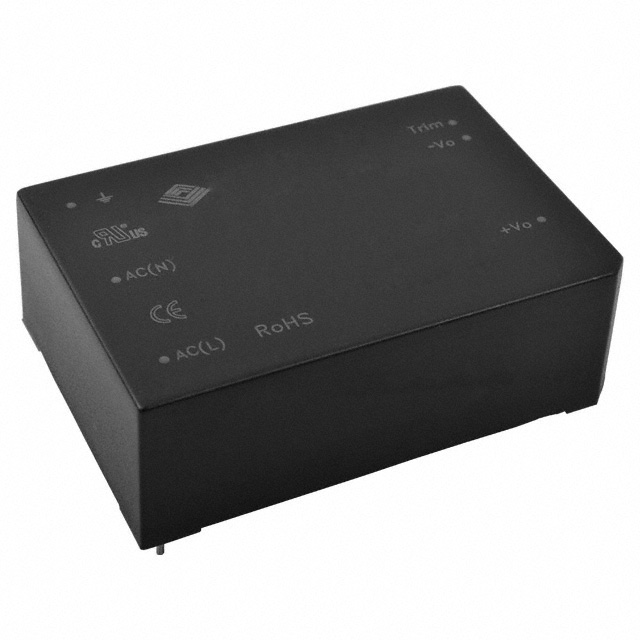

VSK-S20-15U

Obsolete

CUI Inc.

AC/DC CONVERTER 15V 20W

Search across all available documentation for this part.

Obsolete

CUI Inc.

AC/DC CONVERTER 15V 20W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output 1	Current - Output (Max) [Max]	Power (Watts)	Approval Agency	Mounting Type	Load Regulation	Line Regulation	Package / Case	Efficiency	Applications	Weight	Weight	Number of Outputs	Type	Standard Number	Features	Voltage - Isolation	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
CUI Inc. VSK-S20-3R3U	3.3 V	4.1 A	20 W	CB Scheme EN IEC UL	Through Hole	1 %	0.5 %	6-DIP Module	73 %	ITE (Commercial)	0.265 lb	120.2 g	1	Enclosed	55024 55032 60950.1 61000.32 61000.33	Universal Input
CUI Inc. VSK-S20-12U	12 V	1.6 A	20 W	CB Scheme EN IEC UL	Through Hole	1 %	0.5 %	6-DIP Module	81 %	ITE (Commercial)	0.265 lb	120.2 g	1	Enclosed	55024 55032 60950.1 61000.32 61000.33	Universal Input
CUI Inc. VSK-S20-9U-T	9 V		20 W	CE cURus	Chassis Mount				77 %	ITE (Commercial)			1	Enclosed		Universal Input	3000 V	2.1 A	-40 °C	70 °C	96.1 mm	2.17 in	1.26 in	32 mm	3.78 in	54 mm
CUI Inc. VSK-S20-9U	9 V	2.1 A	20 W	CB Scheme EN IEC UL	Through Hole	1 %	0.5 %	6-DIP Module	77 %	ITE (Commercial)	0.265 lb	120.2 g	1	Enclosed	55024 55032 60950.1 61000.32 61000.33	Universal Input
CUI Inc. VSK-S20-12U-T	12 V		20 W	CE cURus	Chassis Mount				81 %	ITE (Commercial)			1	Enclosed		Universal Input	3000 V	1.6 A	-40 °C	70 °C	96.1 mm	2.17 in	1.26 in	32 mm	3.78 in	54 mm
CUI Inc. VSK-S20-15U	15 V	1.3 A	20 W	CB Scheme EN IEC UL	Through Hole	1 %	0.5 %	6-DIP Module	83 %	ITE (Commercial)	0.265 lb	120.2 g	1	Enclosed	55024 55032 60950.1 61000.32 61000.33	Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed AC DC Converters 1 Output 15V 1.3A 85 ~ 264 VAC Input

Technical documentation and resources

No documents available
