2463L SL002

Active

ALPHA WIRE

MULTI-PAIR 8CON 22AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 8CON 22AWG SLATE

Technical Specifications

Parameters and characteristics for this part

Specification	2463L SL002

Cable Type	Multi-Pair
Conductor Insulation	Low Smoke Zero Halogen (LSZH)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	8
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

MULTI-PAIR 8CON 22AWG SLATE

Part	Cable Type	Shield Type	Conductor Insulation	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Features	Conductor Material	Jacket Color	Voltage	Shield Coverage	Number of Conductors	Wire Gauge	Usage	Shield Material
ALPHA WIRE 2463L SL002	Multi-Pair	Foil	Low Smoke Zero Halogen (LSZH)	500 '	152.4 m	0.025 in	0.635 mm	7	30 AWG	Drain Wire	Copper, Tinned	Slate	300 V	100 %	8	22 AWG	Communication, Control	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 3.22

General part information

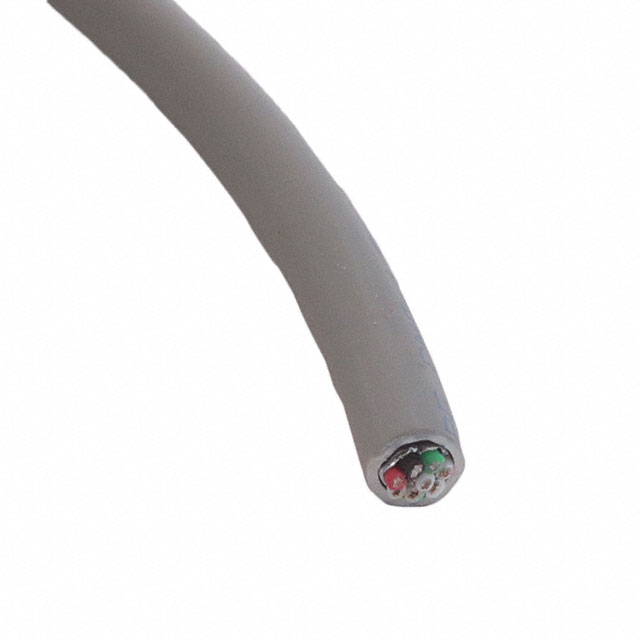

8 (4 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG Foil 500.0' (152.4m)
