AMA4B2KP-KXR

Active

Ambiq Micro, Inc.

MCU 192MHZ M4F 2MB FLSH 131BGA

Search across all available documentation for this part.

Active

Ambiq Micro, Inc.

MCU 192MHZ M4F 2MB FLSH 131BGA

Technical Specifications

Parameters and characteristics for this part

Specification	AMA4B2KP-KXR

Architecture	MCU
Connectivity	MMC/SD/SDIO, GPIO, USB OTG, UART/USART, SPI, I2C
Core Processor	ARM® Cortex®-M4F
Flash Size	2 MB
Number of I/O	81
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Package / Case	131-VFBGA
Peripherals	WDT, AES, I2S, DMA
RAM Size	2.75 MB
Speed	192 MHz
Supplier Device Package	131-BGA
Supplier Device Package [x]	4.7
Supplier Device Package [y]	4.7

MCU 192MHZ M4F 2MB FLSH 131BGA

Part	Architecture	Peripherals	Flash Size	Number of I/O	Core Processor	Speed	RAM Size	Connectivity	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]
Ambiq Micro, Inc. AMA4B2KP-KXR	MCU	AES, DMA, I2S, WDT	2 MB	81	ARM® Cortex®-M4F	192 MHz	2.75 MB	GPIO, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG	131-VFBGA	-20 C	60 °C	4.7	131-BGA	4.7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

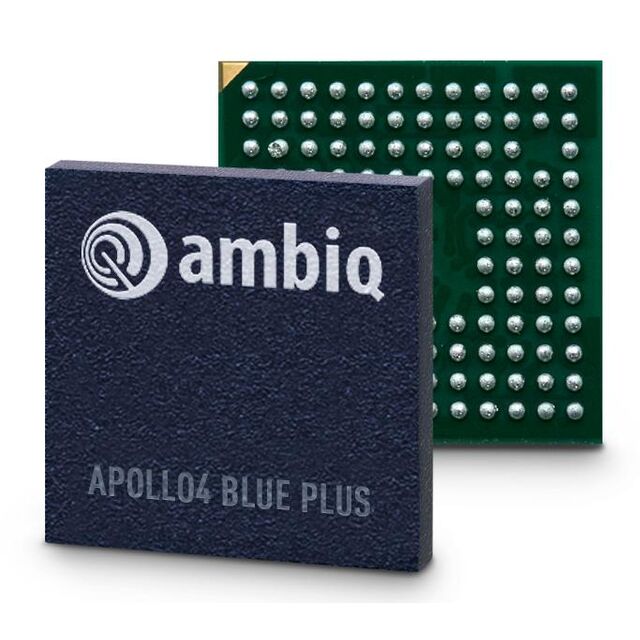

ARM® Cortex®-M4F System On Chip (SOC) IC Apollo4 Blue Plus 192MHz 131-BGA (4.7x4.7)
