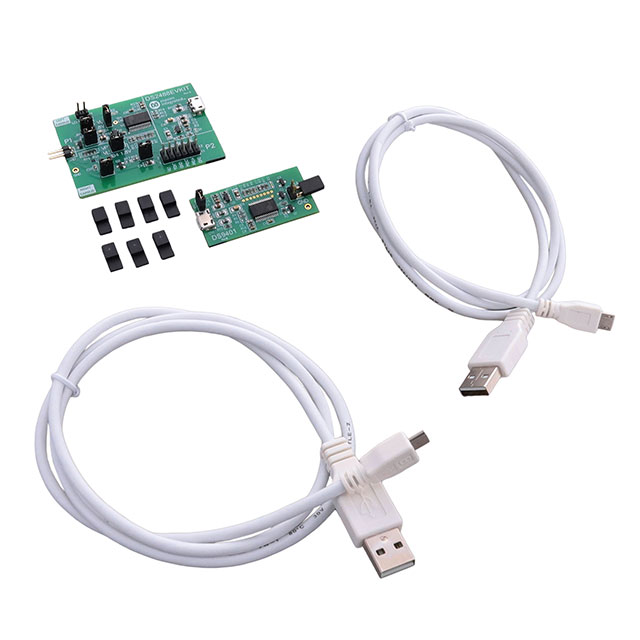

DS2488EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
DS2488 EVALUATION SYSTEM
Deep-Dive with AI
Search across all available documentation for this part.
DS2488EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
DS2488 EVALUATION SYSTEM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS2488EVKIT# | DS2488 Series |
|---|---|---|
| Current - Supply | - | 60 µA |
| Function | USB | Controller, USB |
| Interface | - | 1-Wire® |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 8-XFBGA, WLBGA |
| Protocol | - | 1-Wire® |
| Supplied Contents | Cable(s), Board(s) | Cable(s), Board(s) |
| Supplier Device Package | - | 8-WLP |
| Supplier Device Package | - | 1.6 |
| Supplier Device Package | - | 0.9 |
| Type | Interface | Interface |
| Utilized IC / Part | DS2488 | DS2488 |
| Voltage - Supply | - | 3.63 V |
| Voltage - Supply | - | 1.71 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 106.30 | |
| 10 | $ 106.05 | |||
DS2488 Series
1-WIRE DUAL-PORT LINK
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Supply | Protocol | Supplier Device Package | Supplier Device Package [x] | Supplier Device Package [y] | Package / Case | Function | Interface | Utilized IC / Part | Type | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated DS2488X+U | 85 °C | -40 °C | 3.63 V | 1.71 V | 60 µA | 1-Wire® | 8-WLP | 1.6 | 0.9 | 8-XFBGA, WLBGA | Controller | 1-Wire® | |||
Analog Devices Inc./Maxim Integrated DS2488EVKIT# | USB | DS2488 | Interface | Board(s), Cable(s) |
Description
General part information
DS2488 Series
DS2488 USB Interface Evaluation Board
