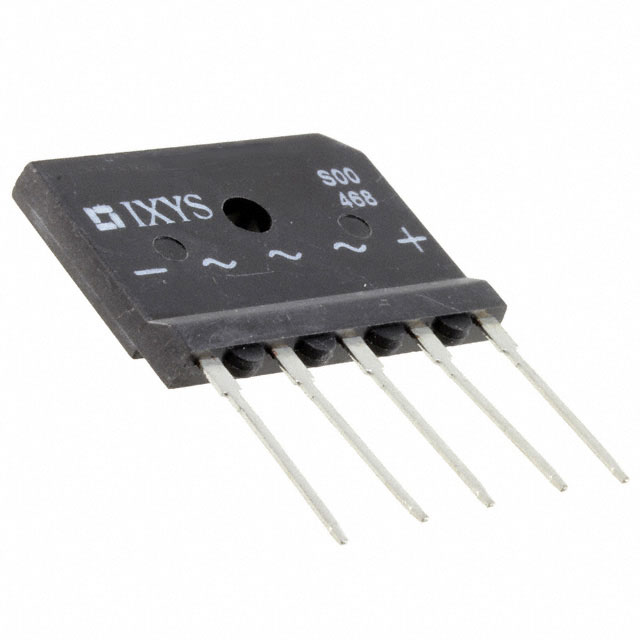

GUO40-12NO1

Active

IXYS

BRIDGE RECT 3P 1.2KV 40A GUFP

Search across all available documentation for this part.

Active

IXYS

BRIDGE RECT 3P 1.2KV 40A GUFP

Technical Specifications

Parameters and characteristics for this part

Specification	GUO40-12NO1

Current - Average Rectified (Io)	40 A
Current - Reverse Leakage @ Vr	40 µA
Diode Type	Three Phase
Mounting Type	Through Hole
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	5-SIP
Supplier Device Package	GUFP
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.28 V
Voltage - Peak Reverse (Max) [Max]	1.2 kV

Part	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Technology	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Diode Type	Package / Case	Voltage - Peak Reverse (Max)	Voltage - Peak Reverse (Max) [Max]
IXYS GUO40-16NO1	GUFP	-40 C	175 °C	1.28 V	Through Hole	Standard	40 A	40 µA	Three Phase	5-SIP	1.6 kV
IXYS GUO40-12NO1	GUFP	-40 C	175 °C	1.28 V	Through Hole	Standard	40 A	40 µA	Three Phase	5-SIP		1.2 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Three Phase Standard 1.2 kV Through Hole GUFP
