S8AW-WL
ActiveNKK Switches

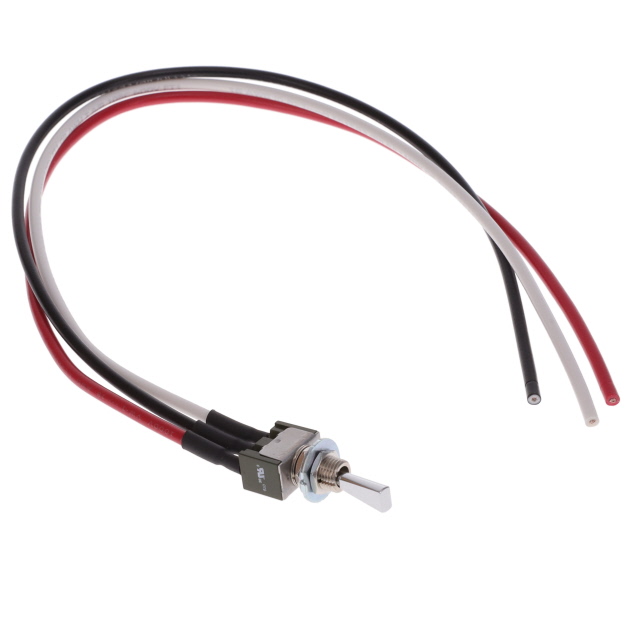

SWITCH TOGGLE SPDT 15A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S8AW-WL
ActiveNKK Switches
SWITCH TOGGLE SPDT 15A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S8AW-WL |
|---|---|
| Actuator Length [x] | 17.5 mm |
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Standard Round |
| Bushing Thread | M12 |
| Bushing Thread | 1 x 1 |
| Circuit | SPDT |
| Current Rating (Amps) | 20 A, 15 A |
| Electrical Life | 25000 Steps |
| Illumination | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 12.5 mm |
| Switch Function | Mom-Off-Mom |
| Termination Style | Wire Leads |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 23.41 | |
| 10 | $ 20.20 | |||
| 25 | $ 19.04 | |||
| 50 | $ 18.21 | |||
| 100 | $ 17.41 | |||
| 250 | $ 16.41 | |||
| 500 | $ 15.69 | |||
Description
General part information
S8AW Series
Toggle Switch SPDT Panel Mount
Documents
Technical documentation and resources
