0370-0-19-80-07-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Technical Specifications

Parameters and characteristics for this part

Specification	0370-0-19-80-07-27-10-0

Accepts Pin Diameter [Max] [diameter]	0.082 in
Accepts Pin Diameter [Max] [diameter]	2.08 mm
Accepts Pin Diameter [Min] [diameter]	0.065 in
Accepts Pin Diameter [Min] [diameter]	1.65 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	3.66 mm
Flange Diameter [diameter]	0.144 in
Length - Overall	17.53 mm
Length - Overall [x]	0.69 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	2.72 mm
Pin Hole Diameter [diameter]	0.107 in
Socket Depth	9.53 mm
Socket Depth	0.375 in
Tail Type	Crimp
Termination	Solder

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall	Length - Overall [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Contact Finish	Socket Depth	Socket Depth	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Material	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Tail Type	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 0370-0-19-80-07-14-10-0	-55 °C	125 °C	17.53 mm	0.69 in	3.66 mm	0.144 in	Solder	Gold	9.53 mm	0.375 in	2.72 mm	0.107 in	Beryllium Copper	0.065 in	0.082 in	2.08 mm	1.65 mm	Crimp	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 0370-0-19-80-07-80-10-0	-55 °C	125 °C	17.53 mm	0.69 in	3.66 mm	0.144 in	Solder	Tin	9.53 mm	0.375 in	2.72 mm	0.107 in	Beryllium Copper	0.065 in	0.082 in	2.08 mm	1.65 mm	Crimp	200 Áin	5.08 Ám
Mill-Max Manufacturing Corp. 0370-0-19-01-07-27-10-0	-55 °C	125 °C	17.53 mm	0.69 in	3.66 mm	0.144 in	Solder	Gold	9.53 mm	0.375 in	2.72 mm	0.107 in	Beryllium Copper	0.065 in	0.082 in	2.08 mm	1.65 mm	Crimp	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 0370-0-19-01-07-14-10-0	-55 °C	125 °C	17.53 mm	0.69 in	3.66 mm	0.144 in	Solder	Gold	9.53 mm	0.375 in	2.72 mm	0.107 in	Beryllium Copper	0.065 in	0.082 in	2.08 mm	1.65 mm	Crimp	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 0370-0-19-80-07-27-10-0	-55 °C	125 °C	17.53 mm	0.69 in	3.66 mm	0.144 in	Solder	Gold	9.53 mm	0.375 in	2.72 mm	0.107 in	Beryllium Copper	0.065 in	0.082 in	2.08 mm	1.65 mm	Crimp	30 Áin	0.76 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

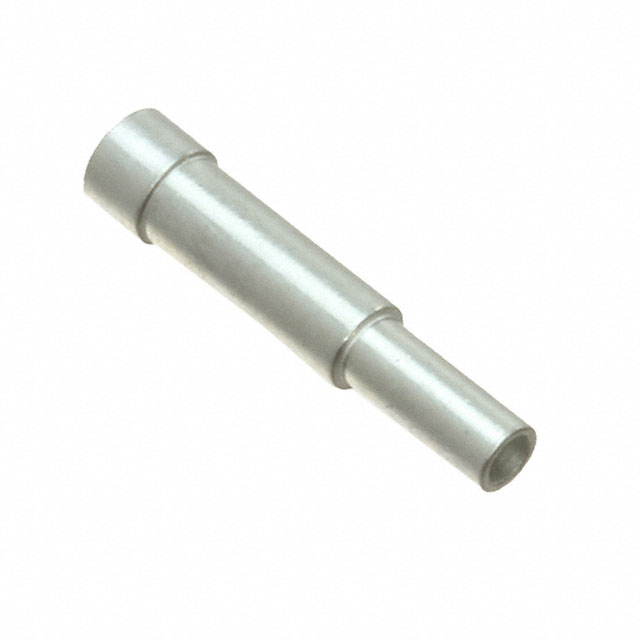

Pin Receptacle Connector 0.065" ~ 0.082" (1.65mm ~ 2.08mm) Crimp Solder
